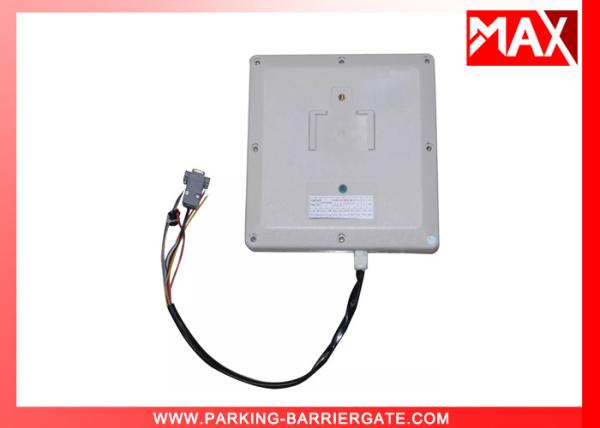

5m Reading Passive Middle Range Uhf Rfid Card Reader Writer 865-868 mhz
5m Reading Passive Middle Range Uhf Rfid Card Reader Writer 865-868 mhz
Specifications
Brand Name :
MAX
Model Number :
MX-9U
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
800 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Export Wooden Case
Power Supply :
DC9V
Indicator :
LED and buzzer
Frequecy Range :
902-928 mhz, 865-868mhz
Working distance :
3-6M
Dimension :
235*235*57mm
Working temperature :
45°C~+95°C (-49°F~ 167°F)
Description

5m Reading Passive Middle Range Uhf Rfid Card Reader Writer


1.Quick Details:

Product Name
Passive UHF RFID Reader
Working frequency
902~928 MHz or 865~868MHZ
Antenna gain
8dBi circular polarization
Working temperature
45°C~+95°C (-49°F~ 167°F)
Protocol
ISO18000-6C(EPC G2)or ISO-18000-6B
Development kit
Provide SDK development kit, and C#, C++,Java routines
Software
Demo software
Antenna power
1W(adjustable)
Communication interface
Wiegand263442, TCP/IP, RS232 ( WIFI or RS485 is customized)
Input / output interface
1way trigger input or 2 way relay output(customized)
Anti-thunder
6000V
Working distance
3-6M
Storage temperature
30°C~+65°C (-58°F~ 185°F)
Power
DC-7.5-12V,3A
Size
220*220*50mm
Weight
5Kg


Application:

Vehicle management: monitoring and managing autos and containers
Customs management: great speed up the customs’ process
Logistics management: parcels and whale house management
Access control: including car access and personal access
Production line management: monitoring products from end to end
Asset management: dramatically improved the security level

Wiring Diagram:

No.ItemsDetails
1RedPower supply with 12V+
2BlackPower GND
3BrownRS485A+
4OrangeRS485B-
5YellowWG-D0
6GreyWG-D1
7Rose RedTriggerT+
8BlackTriggerT-
9PurpleRS232-RXD
10WhiteRS232-TXD
11BlackGND
