Parking Lot Intelligent Barrier Gate For Vehicle Access Control
Parking Lot Intelligent Barrier Gate For Vehicle Access Control
Specifications
Brand Name :
MAX
Model Number :
MX-30
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Name :
Intelligent Barrier Gate
Working Temperature :
-40℃～+75℃
Remote Control Distance :
Less than 30m
Size :
350*270*935mm
Open/close time :
1.8s; 3s; 6s
Motor Power :
80w
Description

Parking Lot Automatic Barrier Gate For Vehicle Access Control

Packaging & Delivery:

Packaging Details:
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Detail:

Smaple order shipped in 2-3 days after payment. General order shipped in 7-10 days after payment.

Technical Specifications

Name Barrier gate, Parking barrier,Boom barrier
Model MX-30
Size 350*270*935mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 80w
Speed Option 1.8s; 3s; 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 5 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

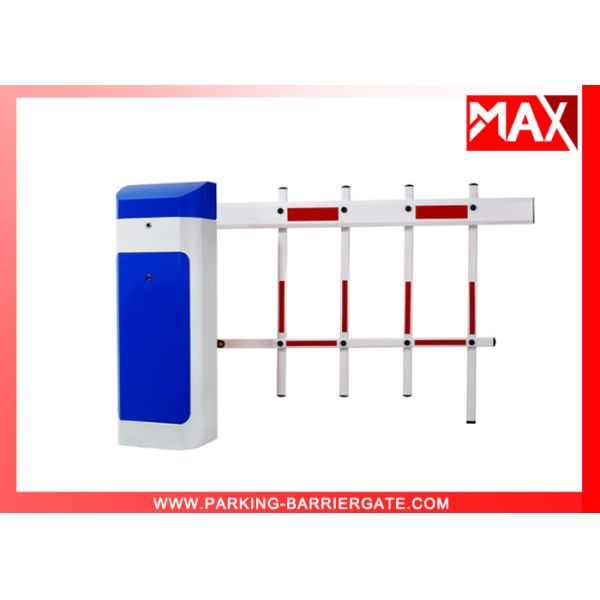

Fence arm, 1-5m for option, two fence or three fence
Working Temperature -45°C — +75°C
Remote Control Distance Less than 30m
Application Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)

Each barrier will include:

1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book

Optional Accessories:

1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder
5. Control board
6. RS485 communication interface

Parking list:

Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1

We do best service for our customer:

Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
