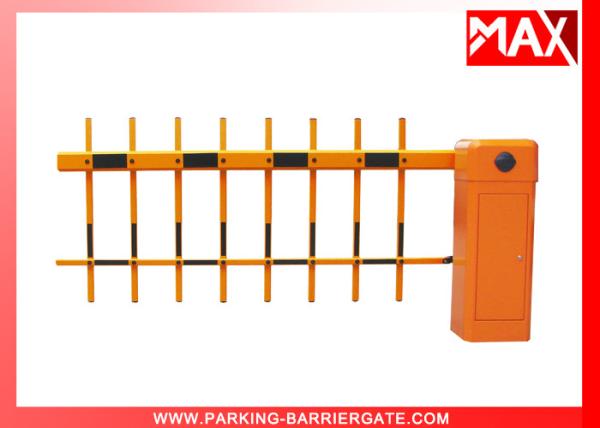

Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length
Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length
Specifications
Brand Name :
MAX
Model Number :
MX-50
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 SETS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Name :
Remote Control Smart Parking Barrier Gates system with Two Fence Arm 1m-4m Length
Protection Degree :
Ip44
Arm Material :
2mm Cold Roller Steel Plate
Color :
Red, Orange, Blue, Black optional
Speed :
1s, 1.8s, 3s,6s
Motor speed :
30r/min
Description

Remote Control Smart Parking Barrier Gates system with Two Fence Arm 1m-4m Length

Technical details:

Model

MX-50 (1st generation machine core)
Power

80w
Material

Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading
Running Time

0.6s, 1s, 1.8s, 3s,4s, 6s

Operating Temperature

-45°C to 75°C
Voltage:

220V ± 10%, 110V ± 10%
Relative Humidity

<90% coagulation free
Motor speed

30r/min
Boom length

Max 6 meters
Net weight:

50Kg
MCBF

≥5, 000, 000 times
Housing Size

320*280*935mm
Traffic light

Optional
Rail material

Aluminum Alloy
Boom Type

Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy
Related accessories

infrared sensors, loop detectors,traffic light, UHF readers
Application

Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block

Advantages

1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems

Each barrier gate will include:

1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book

1 pair photocell( optional)

1 loop detector( optional)

1 RS485( optional)

Functions&Features:

Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length

AC MOTOR-The Drive Unit

#1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
# 2 Machine core can automatically warming when the outside temperature is below 0
# 3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
# 4 Motor cooling: Forced ventilation with fan

Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length

Compressed Balance Spring

Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidentscaused by tension spring

Photoelectronic Limit Switch

Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely

Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length

Arm Auto Reverse

Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle

Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length

Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle

Remote Control Barrier Gate Smart Parking System with Two Fence Arm 1m-4m Length

Service for free:


1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
