Specifications
Brand Name :
MAX
Model Number :
MX-50
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 SETS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Name :
Parking barrier gate
Arm Type :
Straight Articulated, Fence
Working Temperature :
-40℃~+75℃
Color :
Red, Orange, Blue, Black optional
Motor Rotational speed :
1400rmp
Material :
2mm cold roll steel
Description

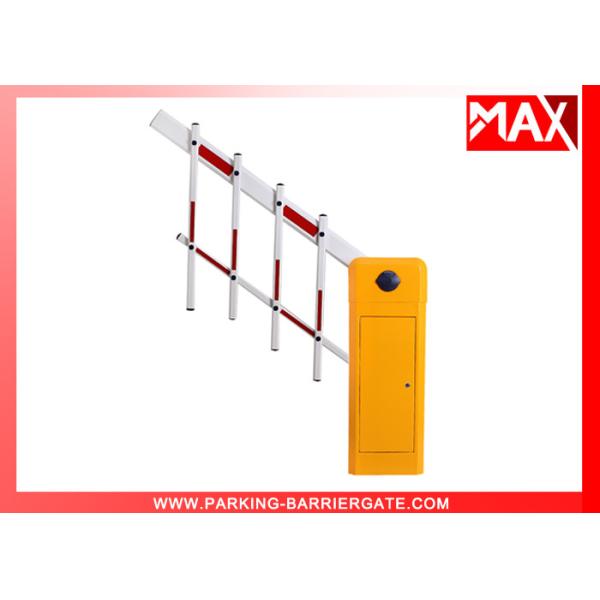

Parking Barrier Gate Manual Release For Parking Management System

Quick Detail:

Model MX-50
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 48kgs
Speed 1S,1.8S,3S, 6S
Max boom length 6 meters
Motor Rotational speed 1400rmp
Protection Degree IP44

Functions&Features:

1. Automatic and manual barriers by MAX are perfect solution for customers who care for enhanced security of their premises or property and for whom the vehicle access control is crucial.

2. No matter, whether you are currently working on a smaller project, large-scale investment or traffic management in your municipal quarters. For more than TEN years MAX company manufacturers and delivers its own customer proven barriers for small to multi-storey car parks, private and company
premises, industrial and hospital premises, hotels, motorways, tunnels, toll stations and other application areas, where it is convenient to use barriers as stand-alone measures or in combination with other access control systems.

3. During the development, the main emphasis was put on utmostreliability, ease of use and safety of operation. Using quality materials and technology ensures long and trouble-free service life of barriers even under demanding conditions with high traffic density.


4. For the most demanding climatic conditions and harsh environments (high humidity, road or sea salts etc.) automatic barriers in stainless steel casing are available.

AC MOTOR-The Drive Unit

#1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
# 2 Machine core can automatically warming when the outside temperature is below 0
# 3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
# 4 Motor cooling: Forced ventilation with fan

6 Meters Parking Barrier Gate Manual Release For Parking Management System

Compressed Balance Spring

Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidentscaused by tension spring

6 Meters Parking Barrier Gate Manual Release For Parking Management System

FREE CUSTOMER ADJUSTMENTS
Every customer is unique and has his/her own specific wishes and needs. MAX is respecting the individuality of its customers.Therefore cabinet colour design, boom shape and left-hand
or right-hand assembly according to customer’s request arecompletely complimentary.

100% TESTED


Each barrier passes a complete inspection of all functions prior to shipment. Customers receive only flawless and checked products.

24/7 CONTINUOUS OPERATION
Automatic barriers by AUTOGARD do not need to rest. They are
designed to deliver maximum performance 24/7. No breaks

GENUINE CZECH MADE
All MAX automatic and manual barrier gates have been developed and crafted with genuine Czech precision and skilfulness.

Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle

Clutch Device

Clutch key can be unlocked to the clutch when power off, conveniently raise the arm without removing the top cover or body housing

Remote Control

Remote control antenna works with remote control push button and remote control units, easily control arm to rise and fall

Model Selection and Differences

Model Boom Shape Max Boom Length Speed
MX-50 Straight boom 6m 6 seconds
MX-501 Straight boom 4.5m 3 seconds
MX-502 90 degree, Articulated boom 5m 6 seconds
MX-503 90 degree, Articulated boom 3m 3 seconds
MX-504 180 degree, Articulated boom 5m 6 seconds
MX-505 180 degree, Articulated boom 3m 3 seconds

Service for free:


1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
