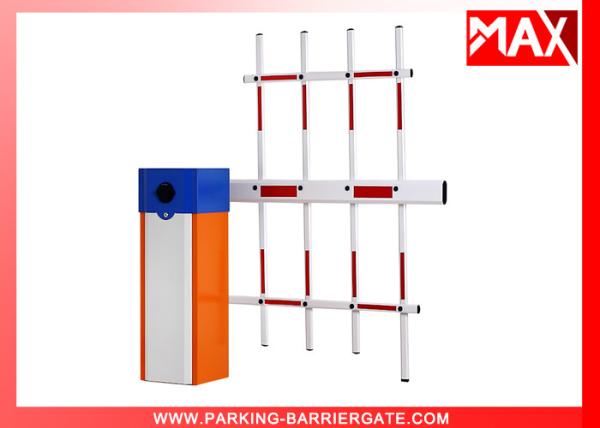

Electronic Boom Barrier Gate Barrier Gate For Car Parking Lot , Automatic Barrier Gate
Electronic Boom Barrier Gate Barrier Gate For Car Parking Lot , Automatic Barrier Gate
Specifications
Brand Name :
MAX
Model Number :
MX-60
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C/Paypal
Supply Ability :
2000 set/month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
name :
Electronic Boom Barrier Gate System Barrier Gate Arm For Car Parking Lot
Boom length :
Max 6 meters
Running Time :
1s, 1.8s, 3s, 6s
Operating Temperature :
-45°C to 75°C
Protection System :
IP54
Rail material :
Rail material
Description

Electronic Boom Barrier Gate System Barrier Gate Arm For Car Parking Lot

Basic Features:

1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.

2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.

3. It is running without arm-shaking.

4. The barrier arm is 90 degrees running which excluding the failure caused 360 degrees running.

5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.

6. The driving mechanism has the designing of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.

7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.

8. Barrier gate can be chosen from 1m to 6m.

Specifications:

Model

MX-60 (MAX 1st generation machine core)
Power

120w
Material

Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading
Running Time 1s, 1.8s, 3s, 6s
Operating Temperature

-45°C to 75°C
Voltage:

220V ± 10%, 110V ± 10%
Relative Humidity

<90% coagulation free
Motor speed

30r/min
Boom length

Max 6 meters
Net weight:

55Kg
MCBF

≥5, 000, 000 times
Housing Size

320*280*935mm
Traffic light

Optional
Rail material

Aluminum Alloy
Boom Type

Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum

alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy
Related accessories

Infrared sensors, loop detectors,traffic light, UHF readers
Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block
Advantages

1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems
Our other products

MAX has other products: tripod turnstiles, sliding gate motor,

flap barrier,swing gate motor,

pedestrian access control turnstiles and barriers,
and other related accessories.

Functions & Features


1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring

breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)

Parking & Shipping:

Packing list

Name

Specifications

Quantity

Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board 1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole 1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key 1 clutch device
Case Key 2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface 1 Optional
Disc 1 Optional
Communication Mould 1 Optional
Cover head 1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole

Why choose us?

1.One year's free servicing is supplied( not including the arm)
2. Lifetime charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
