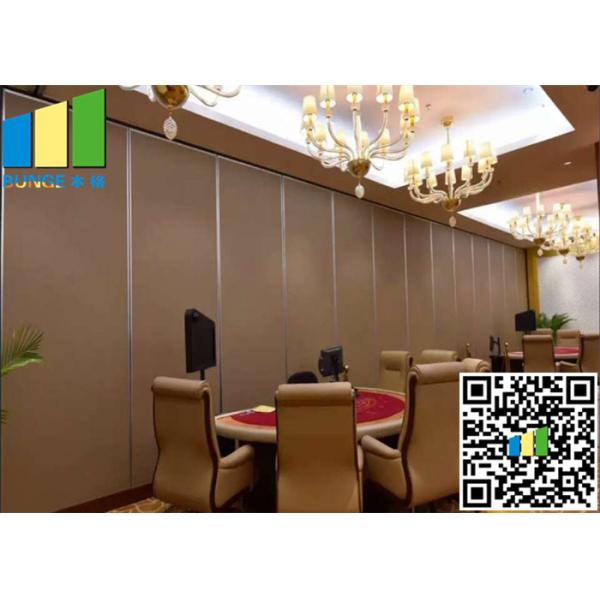

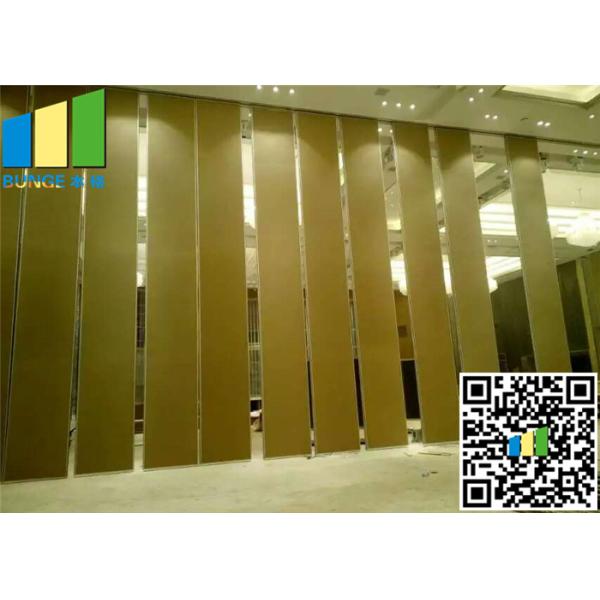

36 / 42 dB Folding Wooden Partition For Convention & Exhibition Centre
36 / 42 dB Folding Wooden Partition For Convention & Exhibition Centre
Specifications
Brand Name :
BUNGE
Model Number :
85mm room dividers
Place of Origin :
China
MOQ :
10 Square Meters
Price :
US $ 100 - 300 / Square Meter
Payment Terms :
T/T
Supply Ability :
5,000 Square Meters per Month
Delivery Time :
10 working days after received your payment
Packaging Details :
Carton package, MDF batten on four section sides ,foam board on both front face
Material :
Aluminum track
Surface :
Leather , Melamin , Wooden
Thickness :
85mm
Sound Proof :
36 / 42 dB
Collection :
movable and foldable
Application :
exhibition hall , hotel , banquet hall .meeting room
Description


China Manufacturer Aluminium High Quality Folding Wooden Partition For Convention & Exhibition Centre


Recovering Partitions

When it's time to refresh the look of your partitions, Bunge service technicians can also recover the faces. They are also trained to remove and re-install the panel hardware so that the face material is properly installed under the trim pieces. If the hardware is not removed, the face material may be butted against the trim, leaving the raw edges to become loose over time.
Whether the faces have become worn, stained, or torn overtime, or if you just need to update your décor, Bunge can help. We offer a large selection of vinyl, fabric, and carpet colors and have access to a wide array of finishes


Technical support

Most of our Bunge products adopt adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design, production and installation.


Applications :

1. Change the room space freely dividly.
2. Heavy Track loading capacity make sure the safety of Partition .
3. Precise welding between separate rail can eliminate repairing and maintenance rate .
4. Partition retract and push easily for one people to handle the operating work .
5. Wide application: can be used in Office place , commercial place , exhibition place , Hospital place .


Specifications:

Technical Parameter for Partition Panel

Panel Width

500~1230mm

Panel height

2000~6000mm

Sound proof

36~42db

Operation

Manual

Frame

Aluminum

Vertical profile

Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside

Finish options

Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish

Base options

Plywood, Gypsum, steel, MDF

Max width

Unlimited

Panel weight

25-40kg/sq

Pass door selection

door

Single dor or double door

Seals

Top

Manual

bottom

Manual




Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier . No floor track shall be used .

Seals :

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system . Retractable seal drop will be 23mm

Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

Track :

The tracks are made from extruded 6063 – T6 anodized aluminum . The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets . Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .

Trolley :

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .
