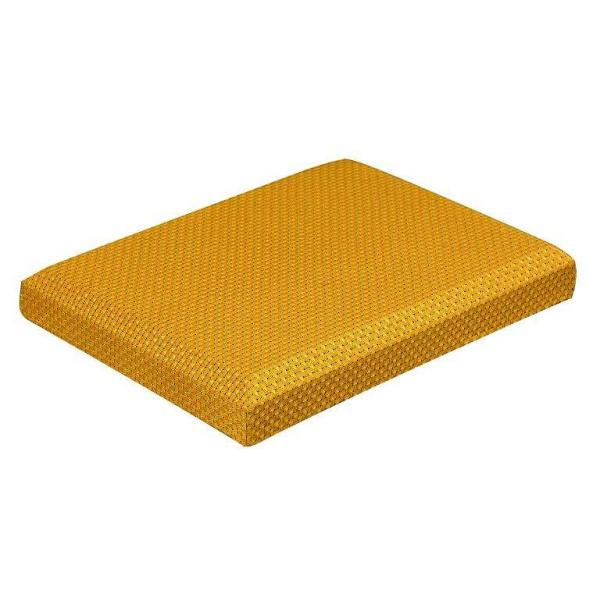

Decorative Sound-Absorbing Wooden Acoustic Fabric Panels

Product Details

Density: 95kgs/m³

Thickness: 25mm & 50mm

Standard Module Size: 1200×2400 or 1200×3000

Edges: Resin hardened, shaped if required.

Concealed Clips: Resin mounted clip fix system.

Fabric Finish: Heritage Textiles Berwick & City Lights together with Guilford of Maine FR701 & Anchorage fabrics are our standard range. However, any acoustically transparent fabric following approval by the factory can be used at extra cost.

Application: All Locations.Theatres, home cinema, schools, sound studios, restaurants, plus many more.

Product Features

1. Acoustics

Excellent sound absorption effect on intermediate frequency sound and low frequency. NRC (noise reduction coefficient) reaches more than 0.85.

2. Physical property

BUNGE fabric acoustic panel is sound-absorbing, thermal Insulation, elastic, wear-resistant, and high impact resistance.

3. Decoration

BUNGE fabric acoustic panel is available printed in an array of color and designs. It is also available embossed providing a subtle textured result. It is the perfect acoustic solution for interior space.

4. Fireproof

Public place like Theater, Dance hall, Auditorium, Multi-purpose hall, Gymnasium, which has the high requirements on fire rating. The fire rating of fabric acoustic panel arrives to GB8624-2006 B1 standard.

5. Security

Thanks to its excellent physical property, fabric acoustic panel has no risk of falling and hurting people. Tested by National Research Center of Testing Techniques for Building Materials, BUNGE fabric acoustic panels' formaldehyde release quantity is 0.1 and complies with the E1 grade Requirements of GB18580-2001 standard.

What is HIR Facing

High Impact Resistant (HIR) facing is applied during the manufacture process to the 25mm or 50mm glass fibre base. This 216kgs/m³ density layer is 3mm thick and covers the entire face of the panel.

This hard surface offers good protection against impact whilst still allowing the sound to penetrate the panel and work correctly. The added density slightly enhances the panel’s performance at low frequencies.
