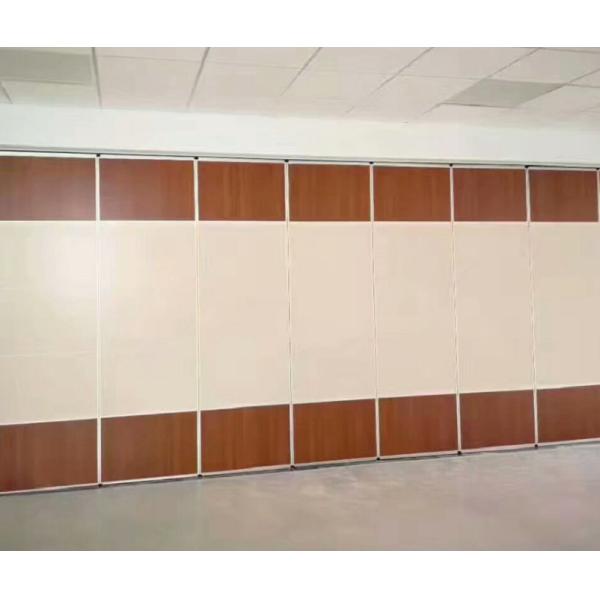

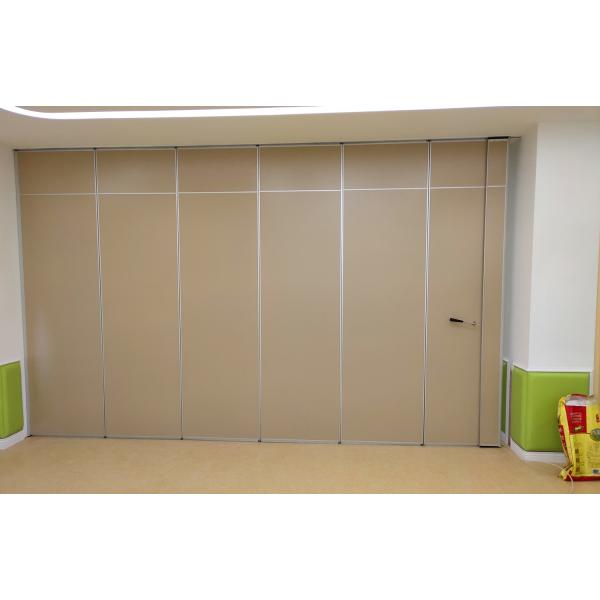

Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
Specifications
Brand Name :
EBUNGE
Model Number :
65 mm acoustic partition walls
Certification :
ISO9001
Place of Origin :
Guangdong
MOQ :
No MOQ, small quantity welcome
Price :
US $82 - 102 per square meter
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500000 square meters per month
Delivery Time :
15 - 20 days
Packaging Details :
Paper carton, outside with wooden box.
Product name :
Acoustic partition walls
Color :
Accept customized
Application :
Function meeting room partitions
Size :
Partition walls customized
Feature :
Soundproof
Position :
Interior
Description

Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room

Acoustic partition walls system details

■ 65mm thickness panel ,Max height up to 4500mm.

■ Top supported without floor track or guide.

■ Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

■ Sound insulation coefficien :STC 32db to 45db, ASTM standard of acoustic tested in HongKong.

■ Available in wide range of finishes.

■ Fast delivery and Rich experiences in oversea project installation guide & supervision


Our service

“One-stop building materials supply” Service.

Our experienced designer and engineers are familiar with your building code, and can always find the best solution for you.

All of our products are customized.

There are many choices to meet your various requirements.

No MOQ restriction.

Much experience to work for all kinds of projects.

Save your valuable time and purchasing cost.

Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room


Acoustic partition walls system features

1. Good performance of sound insulation, thermal insulation and Fire prevention.

2. Save much space for your building.

3. No tracks on the floor, it’s easy to install and remove.

4. Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition hall, Function room and office.

5. Aluminum or steel top hung system.

6. Retractable top and bottom seals ensure effortless movement of panels and sound-proof.

7. Concealed or exposed panel edge profiles.

8. Sealed for life roller assemblies provide smooth and silent movement.

9. Several levels of sound reduction.

10. Extensive range of surface finishes available.

Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room

Acoustic partition walls system technical information

TYPE BG65 BG85 BG100 & BG125
Panel suspension Top hung only
Track system Single or twin point
Panel thickness 65 mm 85 mm 100 mm
Panel height Up to 4000mm,heights greater than 3000mm refer to our technical dept. Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height 4000mm 6000mm 18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'
Frame Aluminum Aluminum Aluminum
Surface material 9mm 9mm 12mm
Fire safety Optional class I Optional class I Optional class I
Vertical profiles Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional Aluminum, anodized with sealing profiles, painter optional
Retractable seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals Aluminum, black with double rubber seals
Operation of seals Manual, with supplied operating handle
Locking Optional lock to passing doors
Passing doors Single open in one panel or double open in two panel
Sound insulation 32-38dB Rw 36-45dB Rw 42-55dB Rw
Weight Approx 22-35kg/sq M Approx 25-40kg/sq M Approx 30-48kg/sq M
Hotel Soundproof Movable Partitioning System Acoustic Partition Walls for Function Meeting Room
