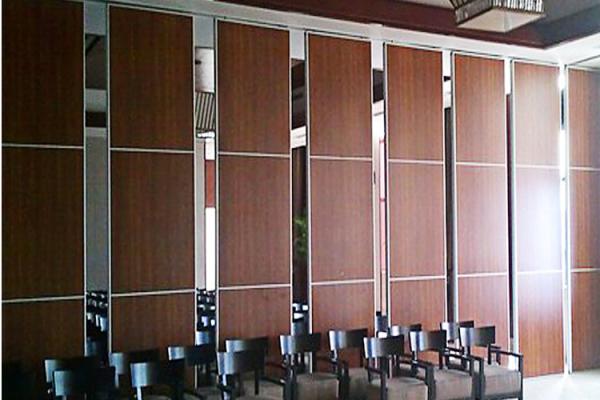

Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
Specifications
Brand Name :
BANGE
Model Number :
85 mm sliding partition walls
Certification :
ISO9001
Place of Origin :
Guangdong
MOQ :
10 square meters
Price :
US Dollars 80 - 120 per square meters
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50000 square meters per month
Delivery Time :
15-20 days
Packaging Details :
Carton package, MDF batten on four section sides , foam board on both front face.
Open style :
sliding
Product name :
Sliding partition walls
Feature :
Sound proofing
Size :
85 mm
Color :
Accept customized
Application :
Office,hotel,conference room
Panel width :
500 mm--1230 mm
Door material :
Melamine board
Surface :
Melamine,leather,fabric,plywood
Position :
Interior
Width :
85 mm(3 1/4 inch)
Description

Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions

Sliding partition walls freature:

  • Ease of Operation
  • Durability
  • Laboratory Certified performance
  • Accredited by Salford University, British Gypsum and Fraunhofer Institute
  • Designed, manufactured, supplied and installed all by one UK based company
  • High acoustic performance up to 59db Rw
  • Acoustically tested pass doors
  • Nominally 65,85 and 100 mm thick.
  • Comprehensive selection of finishes – inc veneer, laminate etc
  • Fully bespoke finishes available on request
  • Flexible division with various stacking options
  • Top hung with no floor tracks
  • Fire rated options available
  • Panels can be manufactured up to 17,000 mm high

Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions

Sliding partition walls description:

The BUNGE sliding partition wall is a rapid action top hung acoustic movable wall system designed for ease, efficiency and reliable daily use. Comprising of interlocking individual panels which, connected together, form a complete secure partition wall. Retractable top and bottom seals are utilised to lock each panel into place to ensure optimum acoustic performance.

Nowadays, this community is most concerned about environmental protection. The advantages of sliding partition walls are particularly significant in environmental protection. First, it is cut off as a sliding partition walls, and more elaborate processing is done inside the factory, eliminating site construction. Pollution in the process of noise, dust, etc.

Second, since the system is a splicing system, whether it is a skeleton or a panel, all of them are realized by standard pendants and fasteners. Therefore, in the future, the owner can change the requirements according to Replacing the partition settings, panel materials and colors by demolition means that both the expansion and the replacement avoid the waste caused by the material discarding and the environmental pollution.

From the point of view of the actual design of the budget, in addition to satisfying the basic needs of customers, the most serious drawback of the current market's lightweight partition walls is the visual loss caused by the loss of the functions of barriers, sound insulation, etc., resulting in reduced space. feel. Active partition manufacturers believe that large-size transparent glass can be used as a barrier material, often through the use of light and shadow, to enable design elements such as color, space, and light to pass through different combinations of variables, resulting in a very personalized style for customers. Bring higher value-added.

Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions

Technical data of Type 65 movable partition :

Panel Suspension Top hanging system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum Or Steel Track
Roller on panel Single or Double Roller
Panel Frames Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top and bottom seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel Surface MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.

Contruction:

1.The wall panel is of double skin construction with a external aluminum frame.

2.The panel faces are not fixed to the frame via hard contact and therefore sound waves impact one side of the panel,the vibration cause will be not directly transferred to the opposite panel face.

3.The aluminum frame of the partition wall is either concealed or exposed to create a flat and smooth edge.

4.The heavy-duty rubber sealing strips install on the panels can ensure an optional sound insulation effect.

5.The quick available mechanism controlling the retractable seals can exert the suffient pressure to the seals to realized the sound insulation.

Interior Conference Room Sound Proofing Moveable Sliding Walls and Door Partitions
