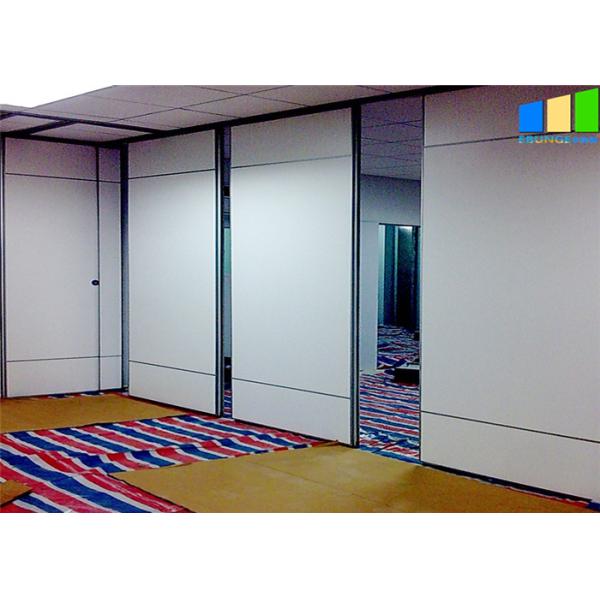

Aluminium movable partition wall sliding folding active sound isolation wall

Description:

Movable partition walls divide a room in minutes with a single thickness of 65 mm sliding panels. No heavy beams or bracing in the ceiling is required. The lightweight top guide track can even mount directly to a suspended ceiling. The floor track is easily removable so the floor is clear when the room divider is not in use.

Movable Wall has excellent acoustical properties. When it comes to sound insulation this Movable Acoustic Wall is the obvious choice, its sound insulation ranges from 37-53 decibels.

Movable Wall Panels runs smoothly along its tracks on ball-bearing trolleys and is very easy to operate, it is rigid, robust and has safety features that assist in its operation.

Technical parameters:

The Model 65mm movable wall is made of aluminum alloy frames and its thickness is 65mm. The aluminum is 6063-T6. Oxidation, electrophoresis, and other processing methods can be adapted according to customers.

Model 65mm mobile partition belongs to the light partition, its operation is easy and flexible. Each panel can be a single hanging and sliding with a single wheel, partition panel can be 360 degrees rotation. Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place. Sliding stable and smooth making dimensional change shows diversity.

The Model 85mm mobile partition belongs to the best cost-effective partition, moderate weight makes the operation convenient and flexible. Each panel can be a single hanging and sliding with a single wheel, partition panel can be 360 degrees rotation. Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place. Sliding stable and smooth making dimensional change shows diversity.

Model 100mm movable partition is high sound insulation, more heavy, sliding, and operation stable. Each panel can be a single hanging and sliding with single wheel, partition panel can be 360 degrees rotation. Or suing two hanging wheels that can be a full range of sliding turn and can be pushed to any place. Sliding stable and smooth making dimensional change shows diversity. It’s the best choice of sound insulation requirements.

Sound insulation:

The sound insulation coefficient of partitions comes from many directions, not only in the partition wall itself but also in other links, as follows:
1. Horizontal sound insulation

In order to achieve the best sound insulation, two layers of sound-absorbing rubber structure are used. Using the jack principle, the double rubber strip is pressed against the ceiling track and floor to provide high stability of the active partition.

2. Corner sound insulation
The use of specially shaped rubber-like corner elements solves the technical problems of handling corner seals; at the same time, superior stability and sound insulation are achieved.

3. Vertical sound insulation
All the soundproof walls are made of highly elastic vertical contact side, concave and convex groove close-fitting principle, to ensure the best closure and sound insulation.

4. Skeleton
In view of the hanging structure of the wall plate, it can be freely shaken, and the metal hoop elements between the wall plates are closely combined, effectively blocking the sound transmission. Panels can be replaced as needed for interior design without damaging the entire panel.
