Specifications
Brand Name :
EBUNGE
Model Number :
65 MM
Place of Origin :
China
MOQ :
1 square meter
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 square meters per month
Delivery Time :
7-28 days
Packaging Details :
Carton paper packing ,MDF Batten cover all over the corner
Product Name :
Acoustic Room Dividers
Material :
MDF with Melamine
Color :
Customized
Service :
ODM & OEM
Finish :
Melamine;fabric;leather
Package :
Standard Wooden Case
Frame Material :
Aluminum Alloy Profile
Max height :
4000 MM
Thickness :
65 MM
Description

Banquet Hall Sliding Folding Partition Door Soundproof Retractable Room Dividers

Series BG65 BG85 BG100
Panel suspension Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 8000mm
Panel width 600-1230mm
Face material 9mm 9mm 12mm
Sound insulation 20-32db RW 30-38db RW 35-45db RW
Weight 20-30 kg/sq M 22-35kg/sq M 28-40kg/sq M
Track system Single or two point
Frame construction Aluminum frame
Finish materials Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Soundproof room dividers can separate the space speedy and conveniently.There is top hung system without the need for a floor track. Banquet hall sliding folding partition door soundproof retractable room dividers are made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.

Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.Soundproof retractable room dividers are hanging on the aluminum track, assembled with multi-direction wheels.

Banquet Hall Sliding Folding Partition Door Soundproof Retractable Room Dividers

About hanging system:

Panel faces are suspended from a steel frame with just 1 or 2 points of contact. The edges of panel faces are slotted into aluminum profiles. This method of cladding the steel frame allows the panel faces to be acoustically separated from each other and thereby minimises the transfer of sound waves through the system. Each panel has an extruded aluminum male profile to one vertical edge and a female profile to the other.

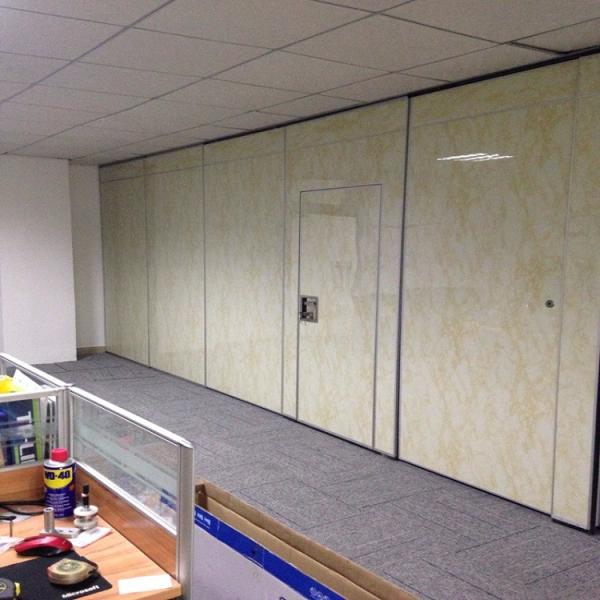

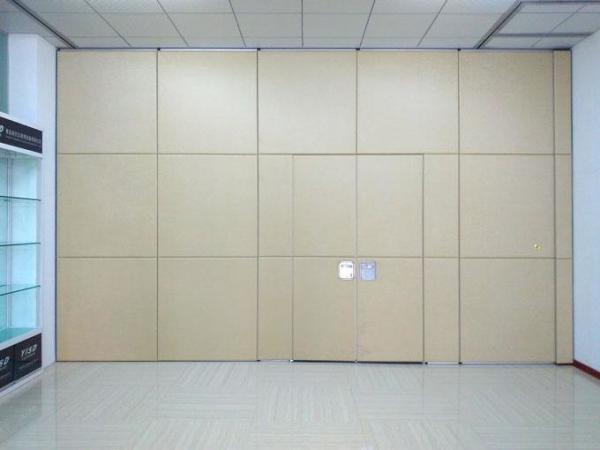

About pass door self-lock system:

Using strong force spring press device to fix the pass door (door-in-door) instead of the fixing method with ground spike that can destroy the floor.

Banquet Hall Sliding Folding Partition Door Soundproof Retractable Room Dividers

About company:

Guangzhou Bunge Building Decoration Engineering Co,.Ltd is a professional company in manufacturing Movable Partitions. It also artistically designs and carefully does research and development. The company has adopted the advance partition technology of USA, Germany and Denmark. We have professional staff with more than 10 years' experience in design, production and installation.

Our product (Movable Partition) are widely used in the hotel banquet hall, meeting room, exhibition hall, conference room, International convention center, KTV, upscale restaurants, office building, schools, hospitals and others.

FAQ

1.Q: Are you a manufacturer or trading company?

A: We are a famanufacturer, and this is our address: No.39-2, Nanwei Road, Hailong street, Longxi Avenue, Liwan District, Guangdong Province, China.

2. Q: What is the price of the movable wall?

A: Our mobile wall system is customized, the cost is calculated by area, the thickness of different walls and the price of different finishes are different. Therefore, we need you to provide us detailed dimensions such as height, width and finish requirements. If possible, we also need your layout drawings.

3. Q: Is the movable partition acoustic (soundproof)?

A: Yes, our movable wall system is soundproof. We have different acoustic material fillings and various sound absorbing panels to achieve different acoustic ratings. For the 65 series we can reach 45db, for the 80 type we can reach 48db, the 85 type can reach 50db, for the 100 type we can reach 50db.

4.Q: How to install an active partition? Is it difficult to complete?

A: It is not difficult to install our active partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees just need to follow them step by step.

5.Q: Do you provide sample?

A: Yes, and the sample is free, you just pay the express delivery fee is ok.

6.Q: What is your payment terms?

A : 30% - 50% of total amount by T/T as deposit when confirmed the order and balance paid by T/T before loading container, or irrevocable L/C at sight.

7. Q : What is your warranty ? What do we do in case of problems?

A : 3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation.In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10- 15 days.
