Specifications
Brand Name :
EBUNGE
Model Number :
85 mm acoustic partition walls
Certification :
ISO9001
Place of Origin :
Guangzhou, China
MOQ :
No MOQ, small quantity welcomed
Price :
US $78-86 per square meter
Payment Terms :
T/T, Western Union
Supply Ability :
50000 square meters per month
Delivery Time :
12-20 days
Packaging Details :
Paper carton, outside with wooden boxes
Product name :
Acoustic partition walls
Application :
Banquet hall partitions
Surface :
Laminate
Weight :
28 - 35 kg/m²
Frame material :
6063-T6 Aluminum Alloy
Base board :
9 mm MDF Board
Description

Banquet Room Movable Wall Partitioning System Hotel Acoustic Foldable Partition Walls Philippines

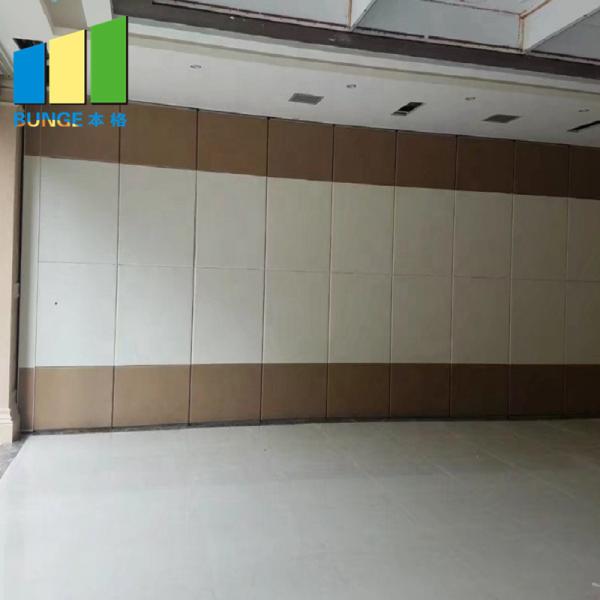

Finished Project

Finished date: This project finished in April 15 th, deliverd on April 18 th,2019.

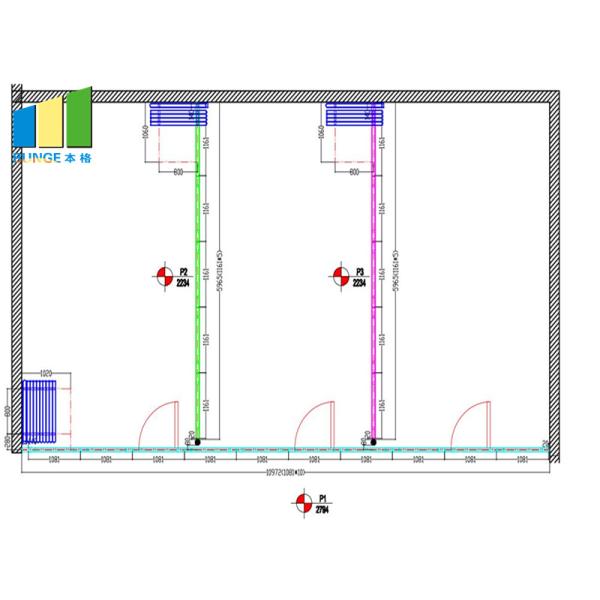

Size:5965*2234 mm, 2 sets of walls.

10972*2794 mm, 1 set of wall.

Totally 3 sets of walls, around 58 square meters.

Color Charts: Top and Bottom Part: Navy-Fine Pitted

Middle Part: Sapele - Fine Terry

Application: Conference room partition walls project in USA.

Banquet Room Movable Wall Partitioning System Hotel Acoustic Foldable Partition Walls Philippines

Banquet Room Movable Wall Partitioning System Hotel Acoustic Foldable Partition Walls Philippines

Banquet Room Movable Wall Partitioning System Hotel Acoustic Foldable Partition Walls Philippines

Technical information

Model BG65 BG85 BG100 Ultra-high System
Suspension System Hanging System, with ceiling rails
Basic Thickness 65mm 85mm 100mm 100 mm
Max Height Max 3800 mm Max 6000 mm Max 8000 mm Max 15000 mm
Width 800 -1230mm
Floor/ceiling Sealing strength Telescopic aluminum tube with rubber strip

Side Walls Sealing

Strength

Double seal tape
Base Board Thickness 9 mm 9 mm 12 mm 12 mm
Vertical Profiles Aluminum anodised with sealing profiles
Retractable Seals Aluminum black with double rubber seals
Operation Manual System, with supplied operating handle
Pass Doors Single or Double Pass Through Door Available
Weight Approx 22-35 kg/m² Approx 25-40 kg/m² Approx30-48 kg/m² Approx38-68 kg/m²
Finish Options Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Banquet Room Movable Wall Partitioning System Hotel Acoustic Foldable Partition Walls Philippines

About us

Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m². And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system, and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.

About the movable walls system we produce, it is a hanging system, which only have the ceiling tracks, but have no floor tracks, so it will not damage the floor or carpet at project site. The biggest features is that they can be divided a big space into 2 or more small rooms. When we do not use them, we can park them to the parking zone quickly. As for the operation, we usually use a handle to move and lock the panels, it is so easy that 1 person can finish the whole operation.

As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply free design to every client and we will reply in 12 hours if the clients have any questions.
