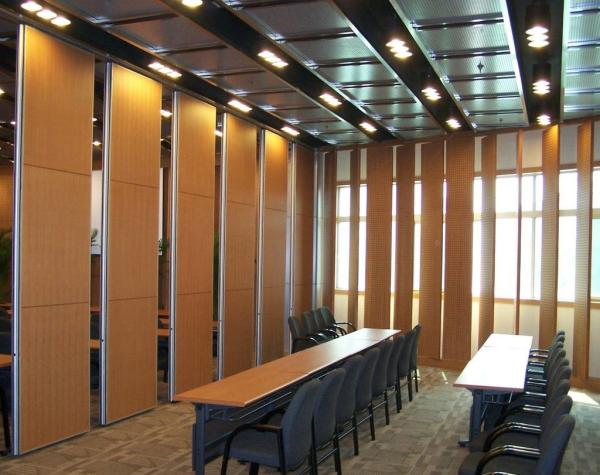

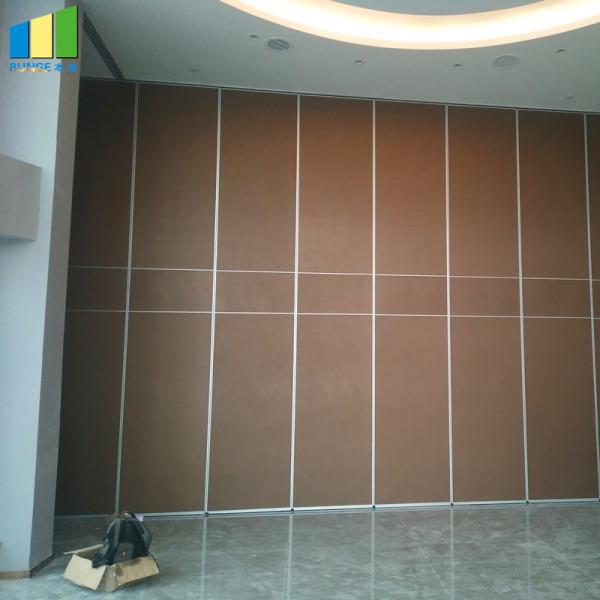

Operable Auditorium Sound proof Floor To Ceiling Movable Partition Wall​

BUNGE movable wall partitions provide a wide range of aesthetic,operational,and performance options and are the perfect solution to meet demanding space flexibility requirements. With over 10 years of acoyustic room dividers expertise, BUNGE movable wall partition has been the exclusive installing distributor of BUNGE movable wall partitions. Our designers can assist you early in your design with layout, structural support and storage pocket requirements, finish options, reliable budgets, and the myriad of other details required to make each application a success. Highlights include:

Product lines
Single, Paired, and continuously hinged panel configurations
Highly customizable finishes including wood veneers, rigidized metals, plastic laminates and more
Flexible storage configurations
Top hung and floor supported systems
Manual and motor-operated systems
Track systems stocked for quick-turn tenant improvement projects
Structural support systems available
In-house factory-certified installers and service techs

Application: all products are suitable for hotel, conference room, multi-function hall, exhibition hall, library, museum, culture square, gymnasium, training institution, office, school, KTV, hospital, shopping market, etc

The structure of movable wall partitions

The BUNGE movable wall partitions structure is composed of aluminum profiles, sheets of treated particleboard or MDF and insulation. The combined structure forms a panel that has a total thickness of 82 mm and depending on the insulation material ensures a soundproof resistance of 32-53dB (decibels).
When the acoustic room divider is supported at the ceiling it runs along an adjustable aluminum upper track that is equipped with bearings inside of carriages. This enables the walls height to be adjusted by ±18 mm. The carriages are installed on every second wall panel and are located at the center of the panel. Because the acoustic room dividers wall hangs from the ceiling, it is important for the installation of the wall that the wall is attached to something solid (i.e. concrete ceiling, steel structure, wood beam etc.).
In the case that the folding wall is supported by the ground, an aluminum track is installed on the floor where the carriages move the wall and at the top there is a guiding track. The height is also adjustable by ±18 mm.
