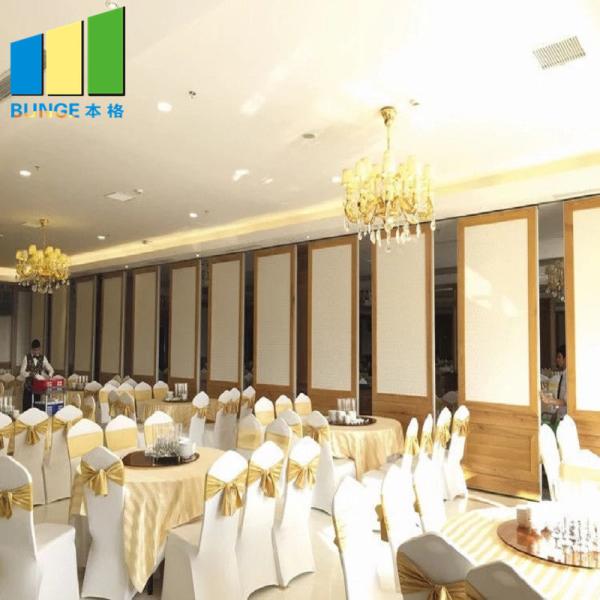

Soundproof Flexible Foldable Moving Partition Sliding Folding Partition Wall for Singapore Hotel
Customized mobile partition wall process
1. Accept customer telephone consultation to understand customer needs, according to customer needs, introduce activities suitable for customers to cut off products.
2. Appointment time, on-site measurement and design.
3. According to the customer's site and requirements, propose a good design proposal and quote.
4. The customer confirms the design plan.
5. Sign the production contract with the customer.
6. The customer pays the deposit.
7. Back to the factory for processing, the elbow, track and related accessories required for the installation of the track, such as four-iron, round pin material, screw, nut, hanger, etc., are sent to the installation site.
8. After the technician enters the site, put the line at the site according to the drawings, and after confirmation by the customer, start installing the track. (The rails will be reinforced with the national standard angle steel from the top of the ceiling, and the rails will be connected with the appropriate welding angles and rails so that the bearing capacity of the rails will achieve good results.)
9. After installation of rails, technicians measure the high and wide dimensions of the site and confirm it with the customer.
10. The professional designer issued drawings and the factory produced door panels according to the drawings.
Technical Information
Model | BG-65 series | BG-80 series | BG-100 series | BG-high series |
Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
Basic thickness | 65mm | 85mm | 100mm | 100mm |
Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip | |||
Side walls sealing strength | Double seal tape | |||
Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel | ||
Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | 40-68kg/sqm. |
Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized |
