65 mm Sliding Partition Walls Conference Room Afford-a-wall Movable Folding Portable

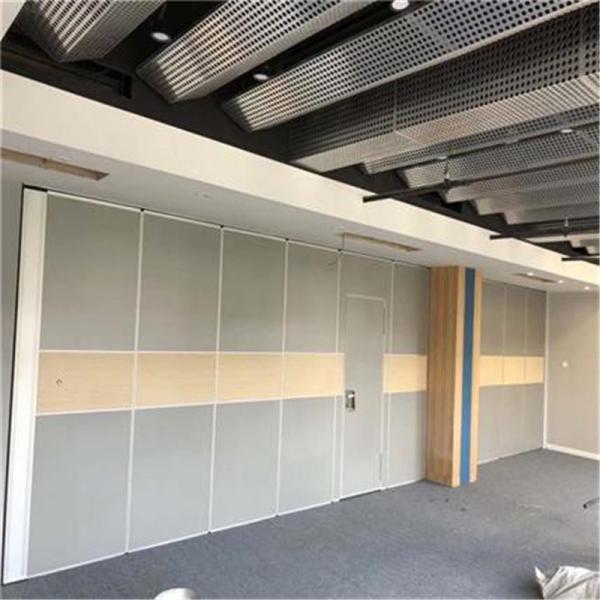

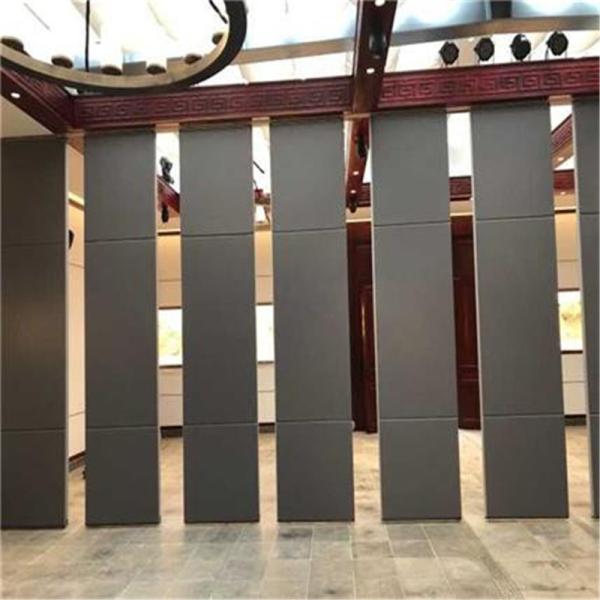

Movable partitions also have the function of sound insulation and noise reduction in social life. In the movable partition wall, including many soundproofing methods, modern movable partition walls, active screens, some of the better functions of the past, and modern high-tech The Combination of achievements, soundproofing effect, and the ability to retract a large indoor space such as: conference room, exhibition hall, hotel, multi-purpose hall, office, banquet hall, perfectly separated by multiple spaces, hanging The door panel does not affect The aesthetics of the space. When it is not used, it can be collected into the storage panel. The decorative surface has different finishes: leather soft cover finish, leather hard cover finish, fabric soft cover finish, fabric hard cover , polyester fiber and so on.
Corner sound insulation: The unique shape of the rubber-like corner parts solves the technical problem of solving the corner position sealing; together, it also achieves excellent stability and noise reduction effect.
Vertical sound insulation: All sound insulation panels are made of highly elastic vertical close-fitting sides and a convex groove-like close fit principle to ensure optimal closure and sound insulation and noise reduction.
Horizontal sound insulation: In order to achieve the best sound insulation effect, the structure of the upper and lower two layers of noise-reducing rubber is selected to press the double-layer rubber strip on the track of the Ceiling and the wooden floor to provide high stability movable partition.
The sound insulation of the movable partition wall requires professional separation expertise and years of experience in partitioning the product. The general wall panel of the movable partition wall is composed of aluminum alloy and steel pipe. This solid and undeformed skeleton is matched with The close connection Of the wall hoop metal hoops shows great stability and aspect ratio sound insulation, and the different sound absorbing materials in the skeleton map can achie
Series | BG 65 | BG 85 | BG100 |
Panel supension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 4000 mm | 6000 mm | 8000 mm |
Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
Face material | 9 mm | 9 mm | 9 mm |
Pass doors | Single Door or Double Door | ||
Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
About us-Best way to build a soundproof partition wall
Guangdong Bunge Building Material Industrial Co.,Ltd is a professional company in manufacturing Movable Partition Walls System. We are the real manufacturer, we have our own factory and showroom in Guangzhou, China, which covers an area over 3000 m2. And we have around 10 years experience in it. There is a ultra-high system sample in our factory, over 8 meters. Every client who came to our factory was amazing in it. BUNGE Factory is always providing the clients with nice quality and competitive price movable wall system , and we are so strict to inspect the quality before delivering. So far, we have exported to USA, Australia Uganda, Lebanon, Sri-Lanka, Saudi Arabia, Philippines and many other countries.
As a professional manufacturer, we not only produce, we also design, deliver and have the after-sales service for clients. If the client need installation service, we also can send our technicians to supervise the installation. In addition, we also can supply Free design to every client and we will reply in 12 hours if the clients have any questions.Welcome partition wall contractor discuss together.
