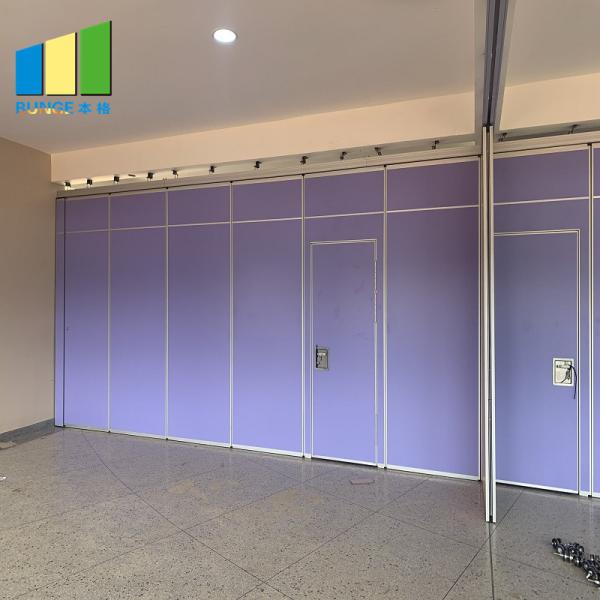

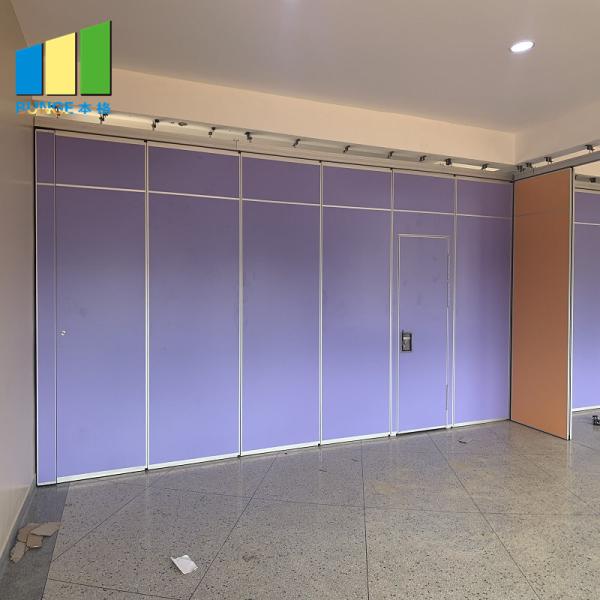

Collapsible Acoustic Office Retractable Wall Movable Partitions for Conference Hall
Aesthetics are essential, and we offer the widest range of finish and construction options which will meet design and functional criteria for any project. Surface finish selections include vinyl, fabric, carpet, veneer, high pressure laminate, murals and other custom surfaces — BUNGE can even factory-apply a surface treatment provided by the customer. In addition to finishes, we also have a broad array of trim options to compliment any design – examples including inset or full-height work surfaces.
We are the single-source partner for the widest range of retractable movable partitions for conference hall in the world, including: glass walls, operable walls, vertical lift walls and accordion doors. BUNGE movable partition walls & GlassWall solutions provide flexible sight and sound separation that enable the users of our products to control and shape the experience of their space. As the most installed brand of operable partitions worldwide, our products can be found everywhere—from the largest convention centers and entertainment arenas to local schools, hotel ballrooms and retail storefronts.
Our retractable movable partitions for conference hall is a movable soundproof room partition system which forms a removable wall. The retractable movable partitions for conference hall are often used to temporarily divide a big room into several small rooms. Unlike other room partition materials, our folding partition movable wall has excellent soundproofing performance and they are hanging on an overhead track system.
Technical Information
Series | BG65 | BG80 | BG100 |
Panel suspension | Top hung only | ||
Track system | Single or twin point | ||
Panel thickness | 65mm | 80mm | 100mm |
Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
Max height | 3500mm | 5200mm | 17000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | ||
Face material | 9mm | 9mm / 12mm | 12mm |
Fire retardant | as request | ||
Retractable seals | have | ||
Adjustable panels | Manual, with supplied operating handle | ||
Pass doors | Single door or double door as request | ||
Sound insulation | 32dB | 40dB | 50dB |
Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Banquet hall retractable movable partitions FAQ
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
How do the goods packing?
Corrugating paper packaging, MDF batten cover all around corner.
The retractable movable partition panels and track, fittings will be packed separately.
What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall).
Secondly, we offer you the movable wall layout drawings for your confirmation.
Thirdly, we quote the movable wall in accordance with confirmed drawings.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
