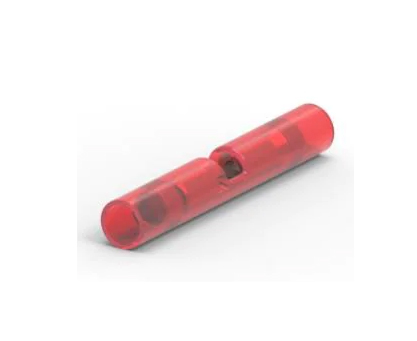

Aviation Parts 320559 Terminals Wire Gauge Min 22 AWG Wire Gauge Max 16 AWG
Aviation Parts 320559 Terminals Wire Gauge Min 22 AWG Wire Gauge Max 16 AWG
Aviation Parts 320559 Terminals Wire Gauge Min 22 AWG Wire Gauge Max 16 AWG
Aviation Parts 320559 Terminals Wire Gauge Min 22 AWG Wire Gauge Max 16 AWG
Specifications
Model Number :
320559
MOQ :
1 pcs
Payment Terms :
L/C, T/T
Price :
Negotiable
Packaging Details :
boxes
Product Category: :
Terminals
Type: :
Butt
Wire Gauge Min: :
22 AWG
Wire Gauge Max: :
16 AWG
Termination Style: :
Crimp
Color: :
Red
Contact Plating: :
Tin
SContact Material: :
Copper
Tradename: :
PIDG
Insulation Material: :
Nylon
Description

Aviation Parts 320559 Terminals Wire Gauge Min 22 AWG Wire Gauge Max 16 AWG

Descriptions of Aviation Parts:

TE Connectivity / AMP Connectors PIDG Terminals consist of tin plated copper or tin plated phosphor bronze body for spring spades, plus a copper and color insulation sleeve fitted over a terminal barrel, and are designed for uniform reliability in the most difficult circuit environments. The specialized design of tool dies and the construction of the terminal allows for uniform insulation thickness under crimping pressure, transmitting this pressure evenly to the center of the crimping area.

Features of Aviation Parts :

  • Asymmetrical housing eliminates the risk of mismating
  • In-line mounting style
  • Crimp termination style
  • A positive lock system ensures reliable connection with audible mating confirmation and high retention force
  • Terminal un-locking features allow easy separation from tabs
  • Robust mechanical design reduces the likelihood of damage during assembly

Specifications of Aviation Parts:

Product Attribute Attribute Value
Product Category: Terminals
RoHS: Details
Product: Splices
Type: Butt
Wire Gauge Min: 22 AWG
Wire Gauge Max: 16 AWG
Stud / Tab Size: -
Termination Style: Crimp
Mounting Style: -
Gender: -
Insulation: Insulated
Color: Red
Contact Plating: Tin
Contact Material: Copper
Series: PIDG
Tradename: PIDG
Packaging: Bulk
Contact Gender: -
Current Rating: -
Insulation Material: Nylon
Length: 32.13 mm
Material: Copper
Maximum Bundle Diameter: -
Mounting Angle: -
Product Type: Terminals
Factory Pack Quantity: 50
Subcategory: Terminals
Voltage Rating: -
Width: -
Unit Weight: 0.052205 oz

Aviation Parts 320559 Terminals Wire Gauge Min 22 AWG Wire Gauge Max 16 AWG
