Laser RangeFinders Module AT-LRF8025 Eye-Safe 25000m Laser Wavelength 1.55μM
Laser RangeFinders Module AT-LRF8025 Eye-Safe 25000m Laser Wavelength 1.55μM
Laser RangeFinders Module AT-LRF8025 Eye-Safe 25000m Laser Wavelength 1.55μM
Laser RangeFinders Module AT-LRF8025 Eye-Safe 25000m Laser Wavelength 1.55μM
Specifications
Brand Name :
Forward
Model Number :
AT-LRF8025
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/years
Delivery Time :
12-14 weeks
Packaging Details :
boxes
Price :
Negotiable
Laser Wavelength :
1.55μm
Maximum Measuring Range :
≥25000m
Minimum Measuring Range :
≤1000m
Ranging Accuracy :
≤ 2m
Repetition Frequency :
≥1~ 5Hz
Accurate Rate :
≥ 98%
Beam Angle :
≤0.4mrad
Volume :
≤240mmx90mmx105.5mm
Weight :
≤800g
Supple Voltage :
9~36 V
Description

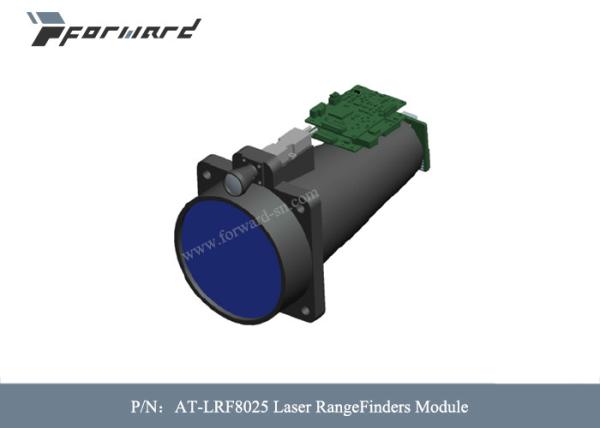

Laser RangeFinders Module AT-LRF8025 Eye-Safe 25000m Laser Wavelength 1.55μm

Descriptions of Laser RangeFinders Moudule:

The AT-LRF8025 laser ranging module uses a semiconductor laser, combined with an advanced optical system, high-efficiency drive, and amplifier circuit design. It can realize the first and last target distance measurement, self-inspection information response, fault location mode feedback and other functions, and has a small size. Light weight, high ranging accuracy, convenient operation, good gold adaptability, high reliability, etc.

Features of Laser RangeFinders Moudule:

  • small and light
  • Hight ranging accuracy
  • Good acclimatization
  • High reliability

Applications of Laser RangeFinders Moudule:

  • Optical sight equipments
  • Optoelectronic system
  • UAV

Specifications of Laser RangeFinders Moudule:

Laser Wavelength 1.54μm
Maximum Measuring Range ≥25000m
Minimum Measuring Range ≤1000m
Ranging Accuracy ≤ 2m
Repetition Frequency ≥1~ 5Hz
Accurate Rate ≥ 98%
Beam Angle ≤0.4mrad
Volume ≤240mmx90mmx105.5mm
Weight ≤800g
Supple Voltage 9~36 V
Operating Temperature -40℃~+55℃

Laser RangeFinders Module AT-LRF8025 Eye-Safe 25000m Laser Wavelength 1.55μM
