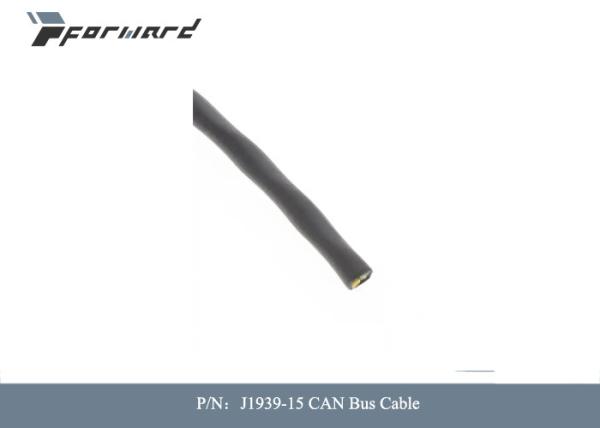

Aviation Parts J1939-15 Automotive CAN Bus Cable Wire Gauge 19 AWG
Aviation Parts J1939-15 Automotive CAN Bus Cable Wire Gauge 19 AWG
Aviation Parts J1939-15 Automotive CAN Bus Cable Wire Gauge 19 AWG
Aviation Parts J1939-15 Automotive CAN Bus Cable Wire Gauge 19 AWG
Specifications
Model Number :
J1939-15
Price :
Negotiable
Payment Terms :
L/C, T/T
Packaging Details :
boxes
Cable Length :
1 ft
Wire Gauge - AWG :
19 AWG
Outside Diameter: :
0.228 in
Jacket Material :
Thermorad
Conductor Material: :
Copper
Stranding: :
19
Brand :
TE Connectivity / Raychem
Product Type :
Multi-Conductor Cables
Description

Aviation Parts J1939-15 Automotive CAN Bus Cable Wire Gauge 19 AWG

Descriptions of Aviation Parts:

  • - SAE J1939-15
  • - Operating Temperature Range: -40C to +125C
  • - Impedance: 120 OHMS +/- 10%
  • - Max. Capacitance (Cond. – Cond.): 22.75pf/ft.
  • - Max Capacitance (Cond. – Shield): 33.5pf/ft.

Features of Aviation Parts:

Overall 2” Maximum Left Hand Direction Twist Lay

- Fibralated Polypropylene Filler

- Overall .0012” Thickness Aluminum/Polyester Tape, 25% Overlap Foil in

- 20 AWG 19/33 Bare Copper Drain Under Tape Shield

- Overall .002” Tissue Separator Tape Pulled Under Jacket

- Overall .047” Wall Black 125C TPR Jacket to .330” Nominal Final Diameter

+/- .010”

- Surface printed in White Ink: TO BE DETERMINED

Specifications of Aviation Parts:

Color White
Overall Diameter 0.294
Weight 3.43
Conductor Count 1 Pair
Impedance 120
Temp 125

Aviation Parts J1939-15 Automotive CAN Bus Cable Wire Gauge 19 AWG
