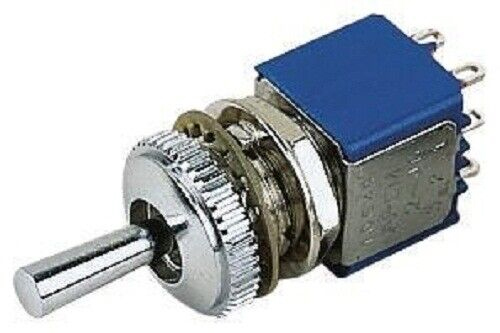

Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
Specifications
Model Number :
5646A9
Payment Terms :
L/C, T/T
Price :
Negotiable
Packaging Details :
boxes
Category :
Toggle Switches
Illuminated: :
Non-Illuminated
Contact Form: :
DPDT
Switch Function: :
ON - (OFF)
Mounting Style: :
Panel Mount
Termination Style: :
Solder Lug
Current Rating: :
6 A
Voltage Rating AC: :
125 VAC
Voltage Rating DC: :
30 VDC
Bushing Size: :
1/4-40
Description

Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)

Descriptions of Aviation Parts:

The 5646A9 is a double-pole double-throw miniature Toggle Switch with solder lug terminals, threaded bushing versions for panel mounting and plain bushing versions for PCB, On-On switch operation, stainless steel housing, diallylphthalate (DAP) or high temperature plastic material (UL94-V0) case, nickel-plated brass actuator, silver contact, UL94HB polyamide paddles, vinyl lever caps and nickel-plated brass bushing

Features of Aviation Parts:

  • Epoxy terminal seal
  • 10mR Initial contact resistance
  • 1000MR at 500VDC Minimum insulation resistance
  • 50000 Cycles electrical life at full load
  • -40 to +85°C Operating temperature range

Specifications of Aviation Parts:

Product Attribute Attribute Value
Product Category: Toggle Switches
Illuminated: Non-Illuminated
Illumination Color: -
Lamp Type: -
Contact Form: DPDT
Switch Function: ON - (OFF)
Mounting Style: Panel Mount
Termination Style: Solder Lug
Current Rating: 6 A
Voltage Rating AC: 125 VAC
Voltage Rating DC: 30 VDC
Bushing Size: 1/4-40
Actuator: Bat
Terminal Seal: Unsealed
Actuator Style: Bat
Contact Material: Silver
Flammability Rating: UL 94 V-0
Housing Material: Stainless Steel
Insulation Resistance: 1000 MOhms
Life: 50000 Cycles
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Mounting Angle: Vertical
Mounting Type: Bushing
Product Type: Toggle Switches
Factory Pack Quantity: 50
Subcategory: Switches
Type: Miniature Toggle Switch

Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
