Weight ≤960g Electro Optical Zoom Pod Visible Laser Thermal Imaging Camera On Drone
Weight ≤960g Electro Optical Zoom Pod Visible Laser Thermal Imaging Camera On Drone
Weight ≤960g Electro Optical Zoom Pod Visible Laser Thermal Imaging Camera On Drone
Weight ≤960g Electro Optical Zoom Pod Visible Laser Thermal Imaging Camera On Drone
Specifications
Brand Name :
Forward
Model Number :
Eagle-Eye960 Infrared 、Visible & Laser Pod
Place of Origin :
China
MOQ :
1 pcs
Payment Terms :
L/C, T/T
Supply Ability :
500 pcs/years
Packaging Details :
boxes
Price :
Negotiatable
Type :
gyrostabilization
Weight :
≤960g
Platform type :
triaxial
Heading :
n×360°
Pitch :
-90°~+90°
Roll :
-50°~+50°
Maximum Angular :
≥100°/ s
Maximum Angular Acceleration :
≥90°/ s2
Angular Position Accuracy :
≤0.3°
Operating Temperature :
-20℃～+60℃
Description

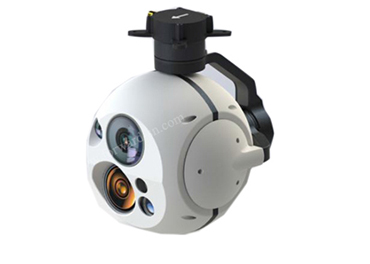

Electro Optical Pod Eagle-Eye960 Infrared ,Visible & Laser Pod Weight ≤960g

Descriptions of Electro Optical Pod:

Eagle-eye960 photoelectric pod is equipped with visible light TV, cooling infrared thermal imager and laser range finder. It has the characteristics of good stability, good observation effect, general purpose and high reliability. It can be used to perform tasks such as target search, capture, identification and tracking, and is suitable for various aircraft and vehicle platforms.

Features of Electro Optical Pod:

  • Multi-sensor intelligent linkage, complementary advantages, to meet the needs of multiple operations
  • Visible light fixed focus and zoom complement each other, and the overall situation and details can be seen²
  • High-definition infrared thermal imaging, breaking through visual limitations, no matter day or night²
  • High-precision laser ranging, target positioning, unparalleled²
  • Intelligent tracking, precise reshooting, ultra-clear images, and diversified functions²


Specifications of Electro Optical Pod:

Parameter Eagle-eye960
Description Type gyrostabilization
Weight ≤960g
Feature Platform type triaxial
Heading n×360°zui
Pitch -110°~+110°
Roll -50°~+50°
Maximum Angular ≥100°/ s
Maximum Angular Acceleration ≥90°/ s2
Angular Position Accuracy ≤0.3°
Visible Light Resolution 30x zoom imaging 1920×1080 @60fps
Fixed focus imaging
Field Angle 30x zoom imaging 63°×35°～2.3°×1.3°
Fixed focus imaging 38.4°×22.2°(8mm)
Infrared Resolution 640×512@60fps
Field Angle(Focus) 12°×9°(35mm)
Tracking Module Tracking Velocity ±48 Pixel/frame @60fps
Laser Ranging Measuring Range ≥3km
Accuracy ±2m
Interface Control Interface RS232
TV-out network /SDI
Power Supply Voltage 11～16V
Power average≤10W ,Max≤16W
Environmental Operating Temperature -20℃～+60℃
Storage Temperature -40℃～+60℃
