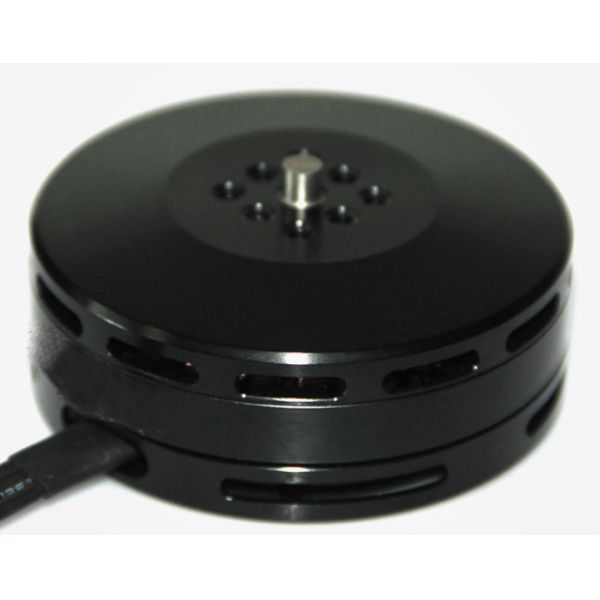

0.41A 120g Disc Permanent Magnet Brushless Dc Motor 235W for drone
0.41A 120g Disc Permanent Magnet Brushless Dc Motor 235W for drone
0.41A 120g Disc Permanent Magnet Brushless Dc Motor 235W for drone
0.41A 120g Disc Permanent Magnet Brushless Dc Motor 235W for drone
Specifications
Brand Name :
Forward
Model Number :
FW-5005-KV280
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Packaging Details :
boxes
No-load current :
0.41A
Motor weight :
120g
Maximum current :
9.8 A
Box weight :
240g (110 x 110 x 50 mm)
Maximum power :
235W
Maximum thrust :
1890g
Description

FW-5005-KV280 Disc Brushless Motor for Drone

Electric Brushless DC Motor FW-5005-KV280 Disc Brushless Motor for Drone Description: The FW-5005-KV280 Disc Brushless Motordisc

Description of Electric Brushless DC Motor for Drone:

The FW-5005-KV280 disc Brushless Motor brushless motor is applied to a single shaft with a load of 650~1700g, The weight of the motor is only 120g, which is suitable for professional drones such as high-end aerial photography, exploration, archaeology, agricultural plant protection, and remote sensing mapping. IP35 dustproof and waterproof protection, using extremely durable bearings, more stable rotation, more drop-resistant, unique mechanism design provides you with better security.

Feature of Electric Brushless DC Motor for Drone:

  • Designed for aerial photography and testing applications
  • Unique built-in "fan" design makes air flow faster and heat dissipation faster
  • Maximum hollow design, ultra-light weight
  • Open design for maximum heat dissipation
  • Standardized motor mounting holes, strong versatility, suitable for various rack installations
  • Using extremely durable and high-quality imported bearings, the rotation is more stable and more resistant to falling

Specifications of Electric Brushless DC Motor for Drone:

Item Parameters
KV value 280KV
No-load current 0.41A
Motor weight 120g
Maximum current 9.8 A
Maximum thrust 1890g
Support lithium battery 4~8S
Resistance 213mΩ
Box weight 240g (110 x 110 x 50 mm)
Maximum power 235W
