Specifications
Brand Name :
Forward
Model Number :
Eagle-eye5000B Electro Optical Pod
Place of Origin :
China
MOQ :
1 pcs
Payment Terms :
L/C, T/T
Supply Ability :
500 pcs/years
Delivery Time :
5-8 weeks
Packaging Details :
boxes
Price :
Negotiatable
Type :
gyrostabilization
Weight :
≤5000g
Heading :
NX360°
Pitch :
+20°~-110°
Angular Position Accuracy :
≤ 50μrad(RMS)
Dimensions :
≤φ190mm×279.9mm
Operating Temperature :
-20℃~+55℃
Laser Ranging :
50~6000m
Description

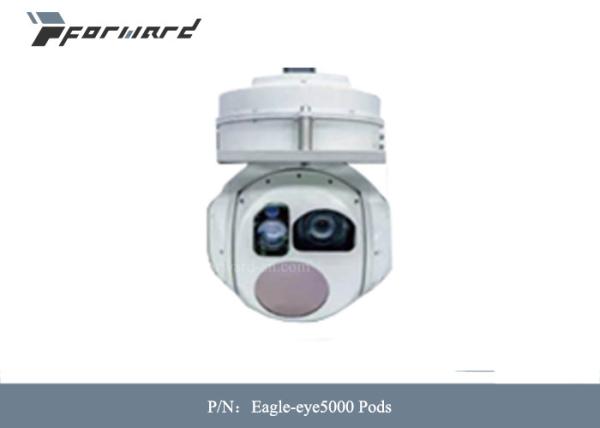

Electro Optical Pod Eagle-eye5000 Electro Optical Pod Weight ≤5000g

Descriptions of Electro Pod:

Eagle-eye5000 photoelectric pod is equipped with 1080P, 30x optical zoom high-performance camera thermal imaging camera, laser range finder and satellite integrated inertial navigation. Light and small UAV low-altitude target search, monitoring and shooting, target positioning and other task requirements.

Features of Electro Pod:

  • Can use the visible light sensor to acquire and output high-definition visible light video in real time;
  • Can use infrared thermal imager to acquire and output infrared video in real time;²
  • High-precision laser ranging function;²
  • With manual mode, lock mode, scan mode and automatic tracking modes;²
  • It has the function of completing target positioning and geographic guidance according to the carrier information;²
  • With high-definition video storage function;²
  • Multi-target detection and prompt function;²
  • With image enhancement function; with video storage function, about 18 hours of high-definition video storage.²
Specifications of Electro Pod:

Specification

Type: Gyro Stabilized

Weight: ≤5kg

Dimensions: ≤φ190mm×279.9mm

Infrared Thermal Imaging

Detector uncooled

Resolution 640×512

Working band 8μm ~ 12μm

Field of view 7.32°×5.86°~35.497°×28.39°

Detection distance: ≥3km,

Recognition distance: ≥1.5km

Features

Two axes (pitch axis: +20°~-110°;

Heading axis: NX360°;

Stable accuracy: ≤ 50μrad(RMS)

Angle measurement accuracy ≤1mrad

Visible Light Imaging

Resolution 1920×1080

Working band 0.4µm~0.7µm

FOV 2.3°×1.3°~63°×35.4°

Detection distance: ≥6km

Recognition distance: ≥4km

Laser Ranging


Working wavelength 1.54μm

Ranging range 50m~6000m

Ranging accuracy ≤2m

Tracking module

Tracking accuracy ≤0.6mrad (RMS)

Maximum search angular velocity ≥60°/s

Maximum tracking angular velocity ≥10°/s

External interface

Control interface :

2 way RS422 serial port

Video output :

1 channel network digital video output

1 channel HD-SDI video output

Power supply

Voltage: 28 VDC,

Power consumption: ≤50W (average),

≤150W (peak)

Environmental conditions

Working temperature -20℃~+55℃

Storage temperature - 40℃~+65℃
