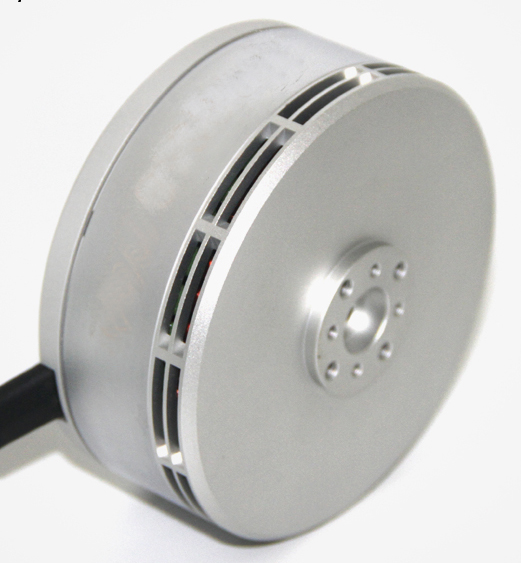

FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone
FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone
FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone
FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone
Specifications
Brand Name :
Forward
Model Number :
FW-8318-KV100
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Packaging Details :
boxes
No-load current :
1.7A/30V
Motor weight :
660 g
Maximum current :
68 A
Box weight :
930g (110 x 110 x 65 mm)
Maximum power :
3224W
Maximum torque :
6.5 Nm
Description

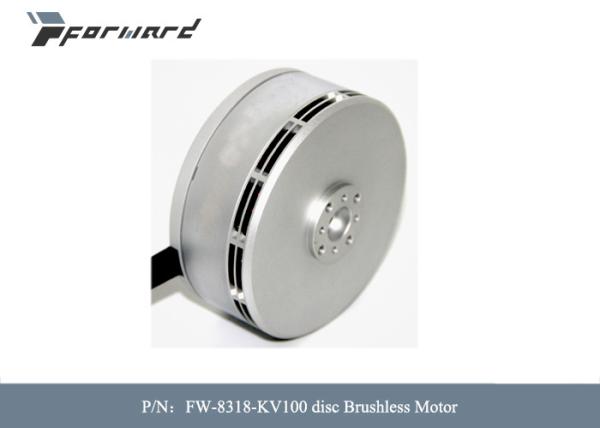

FW-8318-KV100 disc Brushless Motor for Drone

Description of Electric Brushless DC Motor for Drone:

The FW-8318-KV100 disc Brushless Motordisc brushless motor is applied to a single shaft with a load of 5000~10000g, equipped with a 30-inch propeller, and the maximum thrust can reach a single shaft of 14kg. The weight of the motor is only 660g, which is suitable for professional drones such as high-end aerial photography, exploration, archaeology, agricultural plant protection, and remote sensing mapping. IP35 dustproof and waterproof protection, using extremely durable bearings, more stable rotation, more drop-resistant, unique mechanism design provides you with better security

Feature of Electric Brushless DC Motor for Drone:

  • Designed for industrial and agricultural applications
  • Unique motor structure design
  • Maximum hollow design, ultra-light weight
  • Open design for maximum heat dissipation
  • Standardized motor mounting holes, strong versatility, suitable for various rack installations
  • Using extremely durable and high-quality imported bearings, the rotation is more stable and more resistant to falling

Specifications of Electric Brushless DC Motor for drone:

Item Parameters
KV value 100KV
No-load current 1.7A/30V
Motor weight 660 g
Maximum current 68 A
Maximum thrust 16.2 kg
The recommended take-off weight of the whole aircraft 12S-30”/ 4axis 22kg, 6 axis 33kg, 8 axis 44kg
Rated voltage 12S
Internal resistance between phases 61mΩ
Box weight 930g (110 x 110 x 65 mm)
Maximum power 3224W
Maximum torque 6.5 Nm
propeller recommendation 30x10.0,32x9.6,32*10.5

Single-axis take-off weight recommendation

 4.5kg ~ 6.5kg
FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone
