Specifications
Brand Name :
Forward
Model Number :
FW-WY810550
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 pcs/year
Delivery Time :
5-8 work days
Door Type :
Double door/Manual
Internal Configuration :
Adjustable galvanized layer plate, special roller for oil drum, 5cm leak-proof tank at the bottom
Description

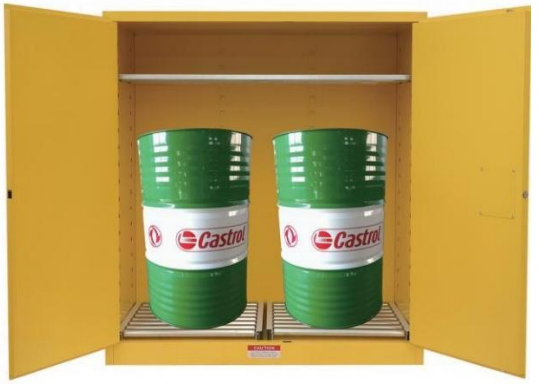

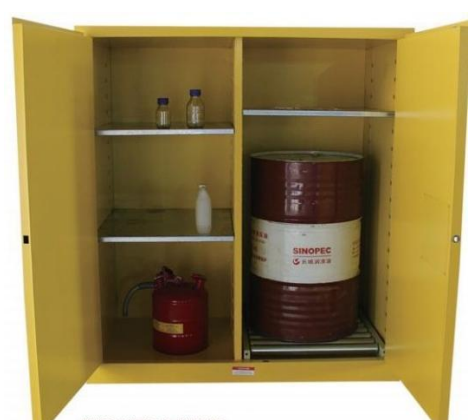

Descriptions of Oil drum safety storage cabinet

Single barrel oil drum storage cabinet, single barrel oil drum combination storage cabinet, double barrel oil drum storage cabinet.It can also be customized according to your needs.90 minutes fire resistance test report, explosion proof test report, EU CE certification, RoHS certification, compliant with EN14470-1:2004, compliant with OSHA 29 CFR 1910.106 & NFPA CODE 30.

Features of Oil drum safety storage cabinet

  • Double-layer steel plate structure, with a 38mm flame retardant layer between the two layers of steel plates
  • Three-point door lock + padlock with piano hinges and double key for the door
  • The cabinet is equipped with galvanized panels that can be freely adjusted up and down at intervals of 8 cm to increase space utilization
  • 5cm high leak-proof tank prevents accidental liquid from spilling
  • Ventilation holes with fire protection devices installed on both sides and top of the cabinet
  • The cabinet body is equipped with an electrostatic grounding conduction port for easy connection of anti-static grounding wires
  • Epoxy resin electrostatic spraying inside and outside the cabinet
  • Fireproof ventilation holes. There are three fireproof ventilation holes with a diameter of 2 inches on the left and right sides and the top of the cabinet.
  • Grounding connector. There is an electrostatic grounding conduction port at the lower left side of the cabinet to conduct static charge to the ground to prevent static sparks from causing fire accidents.
  • Special roller conveyor for oil drums, professionally customized special roller conveyor for oil drums, convenient for oil drums to enter and exit

Selection Guide of Oil drum safety storage cabinet

Model External dimensions Inner Dimensions Door Type Number of layers(piece)
FW-WY810550 1650*860*860mm 1495*780*780mm Double door/manual 1/1
FW-WY810110 1650*1500*860mm 1495*1420*780mm Double door/manual 1/2
FW-WY810115 1650*1500*860mm 1495*1380*780mm Double door/manual 3/1

FW-WY810550 Securely Store Oil Drums with Double Door Safety Cabinet and Special RollerFW-WY810550 Securely Store Oil Drums with Double Door Safety Cabinet and Special Roller
