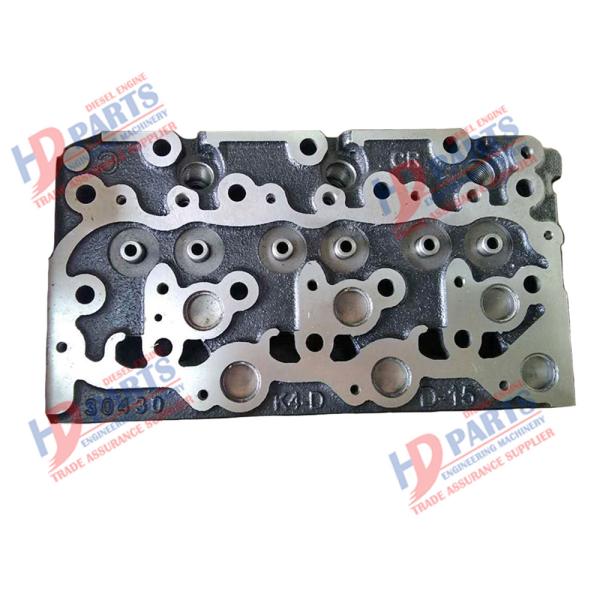

Diesel Engine KUBOTA D1503 Cylinder Head 1A013-03043 1A013-03044
Diesel Engine KUBOTA D1503 Cylinder Head 1A013-03043 1A013-03044
Specifications
Brand Name :
HDPARTS
Model Number :
D1503
Place of Origin :
China
MOQ :
1 pc
Price :
Looking forward to your inquiry
Payment Terms :
T/T, Western Union, MoneyGram,HSBC
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
2-5 work days
Packaging Details :
Plastic bag , Box , Carton
After Warran :
Online support
OEM Service :
Available
Packing :
Plastic bag , Box , Carton
Application :
Construction / Industry / Agriculture / Genset / Marine / Handling
Engine Type: :
Diesel
Marketing Type: :
Hot Product
Description

Specification

Applicable models D1503
Type cylinder head
Original number 1A013-03043 1A013-03044
Warranty 6 months
Engine Type Diesel
Brand Name HDPARTS
Condition New
Size OEM Size

Introduction of cylinder head The cover of the engine and the parts for sealing the cylinder, including water jacket, valve and cooling fin.
Structure function

1. Working conditions and requirements of cylinder head

The cylinder head bears the mechanical load caused by gas force and fastening the cylinder head bolts, and also bears high thermal load due to contact with high-temperature gas. In order to ensure good sealing of the cylinder, the cylinder head shall neither be damaged nor deformed. Therefore, the cylinder head shall have sufficient strength and stiffness. In order to make the temperature distribution of the cylinder head as uniform as possible and avoid hot cracks between the intake and exhaust valve seats, the cylinder head should be well cooled.

2. Cylinder head material

The cylinder head is generally cast by high-quality gray cast iron or alloy cast iron, while the gasoline engine used for cars mostly uses aluminum alloy cylinder heads.

3. Cylinder head structure

Cylinder head is a box part with complex structure. It is machined with intake and exhaust valve seat holes, valve guide holes, spark plug mounting holes (gasoline engines) or injector mounting holes (diesel engines). The cylinder head is also provided with a water jacket, an air inlet and an exhaust port, and a combustion chamber or a part of the combustion chamber. If the camshaft is installed on the cylinder head, the cylinder head is also provided with a cam bearing hole or a cam bearing seat and its lubricating oil passage.

Product Description

Diesel Engine KUBOTA D1503 Cylinder Head 1A013-03043 1A013-03044Diesel Engine KUBOTA D1503 Cylinder Head 1A013-03043 1A013-03044

Guangzhou Hdparts Co., Ltd.
Founded in 1995, we are a company specializing in engine parts for construction machinery (excavators, loaders, bulldozers, heavy trucks, forklifts and other series of construction machinery). Main cylinder block, cylinder head, crankshaft, overhaul kit,piston, cylinder liner, piston ring, size tile, camshaft, connecting rod, oil pump, water pump, valve series products,

PRODUCT CATEGORIES

PACKAGE:

Neutral packing / Our own trademark packing / Your brand OEM packing / Packing according to your requirements.

DELIVERY TIME:

We get to start preparing the goods when we receive payment from you. (The goods will be sent between 48 hours to 72 hours if we have in stock. The goods will be sent before the delivery time and the sample will send to you for checking.)
