57mm (2.3 inch) Red Single Digit Common Cathode 7 Segment Numeric Display

Description:

Seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.

Features:

• 2.3 inch digit height
• Low current operation
• Excellent character appearance
• Easy mounting on P.C. boards or sockets

• Multicolor available

• Mechanically rugged
• Standard: gray face, white segment
• RoHS compliant

Selection guide:

Part number

Emitting color

(Material)

 Lens type Iv (ucd) @ 10mA Description
Min. Typ.
CPS23011AR Hyper red (AlGalnP) White diffused 255000 440000 Common cathode, Rt. Hand Decimal
*52000 *120000

Electrical / Optical characteristics at TA=25℃

Parameter Symbol Emitting color Value Unit
Typ. Max.
Wavelength at peak emission IF=10mA λpeak Hyper Red 645 - nm
Dominant wavelength IF=10mA λdom Hyper Red 630 - nm
Spectral bandwidth at 50% Φ REL MAX IF=10mA Δλ Hyper Red 28 - nm
Capacitance C Hyper Red 35 - pF
Forward voltage IF=10mA VF Hyper Red 1.85 2.35 V
Reverse current (VR=5V) IR Hyper Red - 10

μA

Notes:
1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance λd : ±1nm. )
2. Forward voltage: ±0.1V.
3. Wavelength value is traceable to CIE127-2007 standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure.

Absolute maximum ratings at TA=25℃

Parameter Symbol Value Unit
Power dissipation PD 75 mW
Reverse voltage VR 5 V
Junction temperature Tj 115 ℃
Operating temperature Top -40 to +85 ℃
Storage temperature Tstg -40 to +85 ℃
DC forward current IF 30 mA
Peak forward current IFM 185 mA
Electrostatic discharge threshold(HBM) - 3000 V
Lead solder temperature 260℃ for 3-5 seconds

Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033.

Dimension: (mm)

Multicolor Available 7 Segment Numeric Display Gray Face White Segment

Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01") unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

Through hole display mounting method:

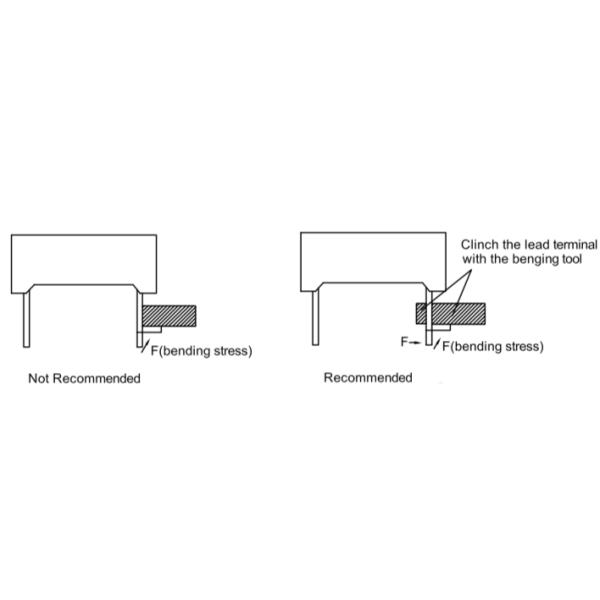

Lead Forming

Do not bend the component leads by hand without proper tools.

The leads should be bent by clinching the upper part of the lead firmly such that the bending force is not exerted on the plastic body.
