1 Pole 12 Position Carbon Composition Potentiometer 26mm Band Selector Rotary Switch

Specifications

Brand Name :

ANYO

Model Number :

SR2612

Place of Origin :

CHINA

MOQ :

1000pcs

Price :

Negotiation

Payment Terms :

L/C, T/T

Supply Ability :

30000 per day

Delivery Time :

8-10 work days

Packaging Details :

20000pcs/carton, 13kg, 40*30*25cm

Other name :

Commutator

Rated power :

350mA @ 125VAC

Max. operating voltage :

250VAC/DC

Withstanding voltage :

1500V Max.

Max. operating current :

0.5A non-switching

Insulation resistance :

100MΩ Min.

Description

26mm Band Selector Rotary Switch, 1 pole 12 position with 6mm shaft

Description:

A rotary switch is a switch operated by rotation. These are often chosen when more than 2 positions are needed, such as a three-speed fan or a CB radio with multiple frequencies of reception or "channels".

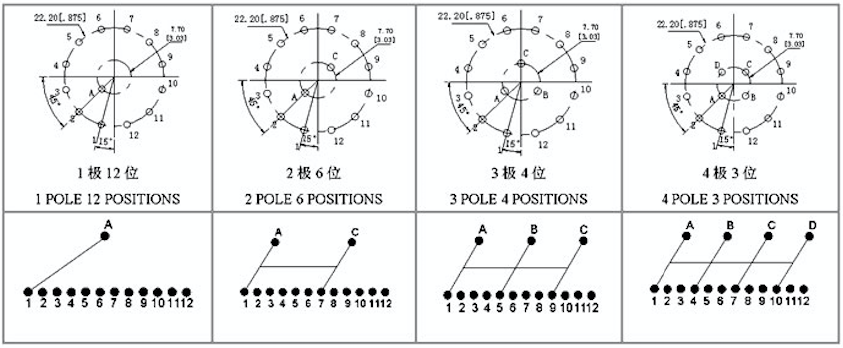

Rotary switches are user configurable in relation to the number of positions. A special toothed washer that sits below the holding nut can be positioned so that the tooth is inserted into one of a number of slots in a way that limits the number of positions available for selection. For example, if only four positions are required on a twelve position switch, the washer can be positioned so that only four switching positions can be selected when in use.

Features:

• Carbon resistive element

• Dustproof enclosure

• Polyester substrate

• Also upon request:

* Wiper positioned at 50% or fully clockwise

* Supplied in magazines for automatic insertion

* Long life model for low cost control potentiometer application

* Self extinguishable plastic UL 94V-0

* Cut track option

* Special tapers

* Mechanical detents

* Low & extra low torque versions

* Special switch option

Electrical specifications:

Rated power	350mA @ 125VAC 150mA @ 250VAC
Max. operating voltage	250VAC/DC
Withstanding voltage	1500V Max.
Max. Operating current	5A non-switching
Insulation resistance	100MΩ Min.
Operating temperature	-30℃~ +85℃
Durability	≥10,000 times

Application:

Widely used on radio, TV, industrial machine control unit, or other electronic devices.

• Lighting equipment adjustment

• Signal selection of audios

• Industrial equipment control

• Exact machinery control

• Public audio system

• Automobile

• Communication equipment

• White goods market

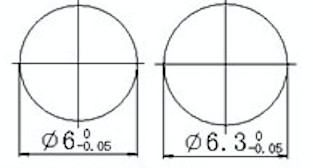

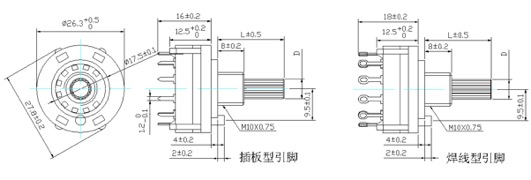

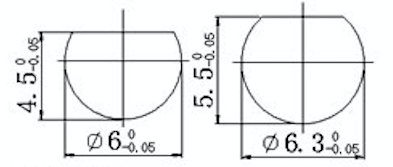

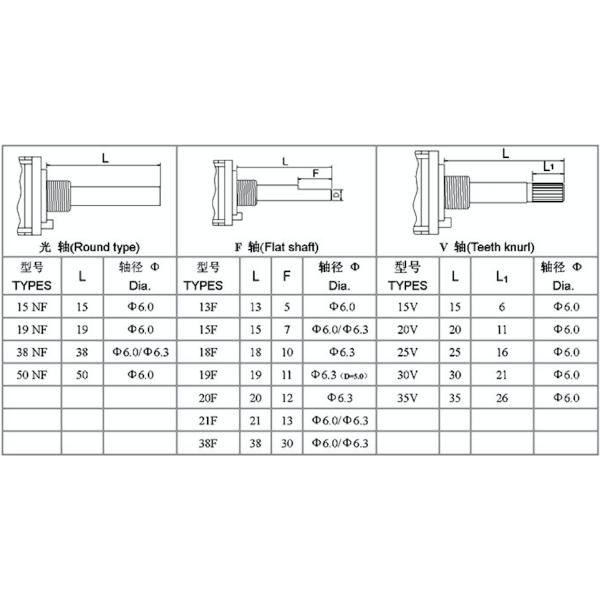

Dimension:
