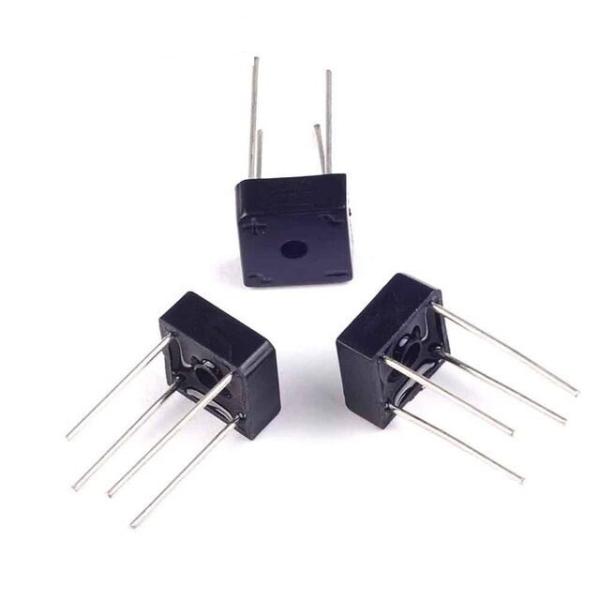

Rectifier diode KBPC610, single phase with molded plastic body

Description:

A Bridge rectifier is an Alternating Current (AC) to Direct Current (DC) converter that rectifies mains AC input to DC output. Bridge Rectifiers are widely used in power supplies that provide necessary DC voltage for the electronic components or devices. They can be constructed with four or more diodes or any other controlled solid state switches.

Single-phase bridge rectifier is the most frequently-used circuit for electronic dc power supplies. It requires four diodes but the transformer used is not center-tapped and has a maximum voltage of VSM. The full-wave bridge-rectifier is available in three distinct physics forms. The single secondary winding is connected to one side of the diode bridge network and the load to the other side.

The main advantage of this bridge circuit is that it does not require a special centre tapped transformer, thereby reducing its size and cost.

Features:

• The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
• Ideal for printed circuit boards
• Low reverse leakage
• High forward surge current capability
• High temperature soldering guaranteed: 260℃/10 seconds,at 5 lbs. (2.3kg) tension

Mechanical data:

Application:

It is used in many electronic devices including laptop computers, cellular phones and PDA's

Maximum ratings and electrical characteristics:

Rating at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load,60HZ.
For capacitive load, derate current by 20%

NOTES:

1. Unit mounted on 6.0” x 5.5” x0.11” thick(15x14x0.3cm)Al.plate.
2. Unit mounted on P.C. board with 0.47” x 0.47”(12x12mm) copper pads,0.375”(9.5mm) lead length.

Dimension:(mm)
