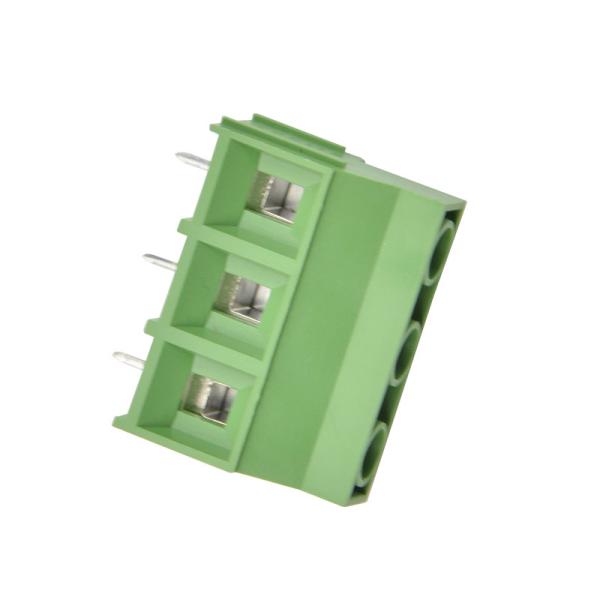

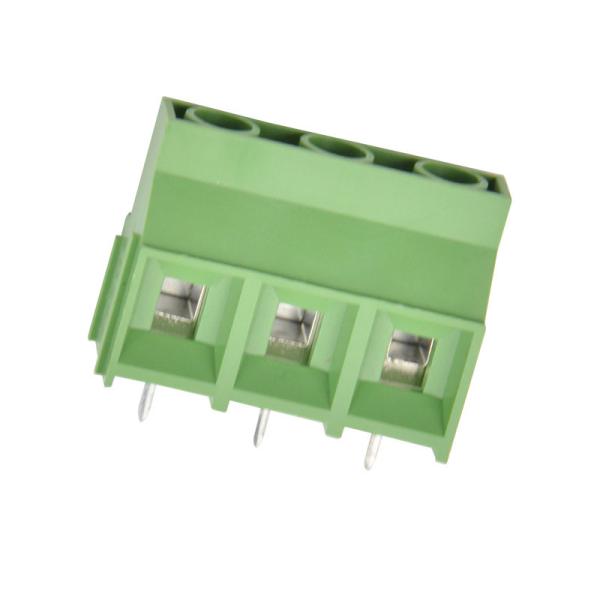

Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Specifications
Brand Name :
KAIFENG
Model Number :
KF950A-7.62
Certification :
IEC60998 UL1059 standards
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Supply Ability :
30000pcs per day
Packaging Details :
customized carton
Delivery Time :
8-10 work days
Payment Terms :
L/C, T/T
Other name :
PCB screw terminal block connector
Screws :
M3.0 steel, Zinc plated
Housing :
PA66, UL94V-0
Clamp :
Brass, Ni plated
Pin header :
Brass, Tin plated
Color :
Customized
Description

7.62mm raising clamp type terminal block connector 2 ~ 24 poles

Description:

How do we connect two wires? By stripping the insulation at the ends and twisting them together? Yes, it works. But, is it safe? We can apply insulation tape over the joint or use a wire connector. But what if there are a number wires that need to be joint/connected near each other? Or, what if multiple outgoing wires are to be connected to a single incoming wire? Then this method will neither be safe nor be convenient anymore. Here we use terminal blocks.

Screw type terminal block can be welded directly on the PCB.

Why you need a terminal block?

• Screw terminals are low in cost when compared to other types of connectors

• It can be readily designed into products for circuits carrying currents of from a fraction of an ampere up to several hundred amperes at low to moderate frequencies.

• The terminals easily can be re-used in the field, allowing for the replacement of wires or equipment, generally with standard hand tools.

• Screw terminals usually avoid the requirement for a specialized mating connector to be applied to the ends of wires.

Applications:

terminal block combination commonly used for microphone- and line level-audio signals, and for control signals.

Electrical:

Rated voltage 300V / 630V
Rated current 30A / 32A
Insulation resistance 500MΩ/DC500V
Withstanding voltage AC3000V/1min
Wire range

26-10AWG 4.0mm²
Torque 0.5N.m(4.43Lb.in)
Strip length 6-7mm
Operating temperature -40℃-105℃
Soldering temperature 250℃±5/5sec.

Dimension:(mm)

Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
Raising Clamp Type Terminal Block Connector 7.62mm 2 ~ 24 Poles UL 1059 Standards
N=Number of poles
Dim P=(N-1)*7.62
Dim L=N*7.62
Dim P Dim L
2-6P ±0.10 ±0.15
7-12P ±0.20 ±0.20
13-18P ±0.25 ±0.30
19-24P ±0.30 ±0.40

If you think that the terminal block is causing any problem in your appliance, you can follow the steps below to test:

1. Take precaution: Turn off the power source by putting the control panel switch at OFF position. Unplug the power cord of your appliance from the wall outlet (if there is any).
2. Find terminal block: Remove the cover of the appliance where the power cord enters the appliance. Follow the power cord, you will find the terminal box at the end.
3. Test terminal block visually: Check carefully if there are any cracks or corroded wires. Also check for burned or loose wires. If you see any of these problems, replace the terminal block.
4. Disconnect terminal block: With the power source turned off, remove the mounting screws for the terminal block. Label the wires with masking tapes indicating the terminals they connect to. Pull off the wire connectors after unscrewing them. Disconnect the ground wire from the block. Disconnect the terminal block by pulling.
