Specifications
Brand Name :
KAIFENG
Model Number :
KF2EDGV-X-5.08
Certification :
IEC60998 UL1059 standards
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Supply Ability :
30000pcs per day
Packaging Details :
customized carton
Delivery Time :
8-10 work days
Payment Terms :
L/C, T/T
Other name :
Terminal block plug
Housing :
PA66, UL94V-0
Pin header :
Brass, Tin plated
Rated voltage :
300V, 320V
Soldering temperature :
250℃ ±5℃ / 5S
Operating temperature :
-40℃~+105℃
Description

Male type PC mount pluggable terminal block socket 2 ~ 24 poles , 5.08mm pitch

Description:

Terminal blocks, for wire to board connection. Terminal block in two parts that can be separated, one part for cable connection, and one part for PCB mounting.This solution enables to easily connect and disconnect.

Compared to other types of connectors, terminal blocks are low in cost. And it can be re-used in the field, allowing for the replacement of wires or equipment, generally with standard hand tools. It usually avoid the requirement for a specialized mating connector to be applied to the ends of wires.

Applications:

The terminal blocks are used in almost all electric appliances that need 240-volt power supply. Electric dishwashers, dryers and ranges use heating elements to produce heat. Heating elements need 240-volt electricity supply. The terminal block is normally located inside the appliance at the front or at the back. All the internal wires and the power cord connect to the terminal block. The terminal block is at the end of the power cord that supplies power to the appliance. It has connectors for attaching electric wires to them.

Electrical:

Rated voltage 300V / 320V
Rated current 15A / 20A
Insulation resistance 500MΩ/DC500V
Withstanding voltage AC2000V/1min

Dimension:(mm)

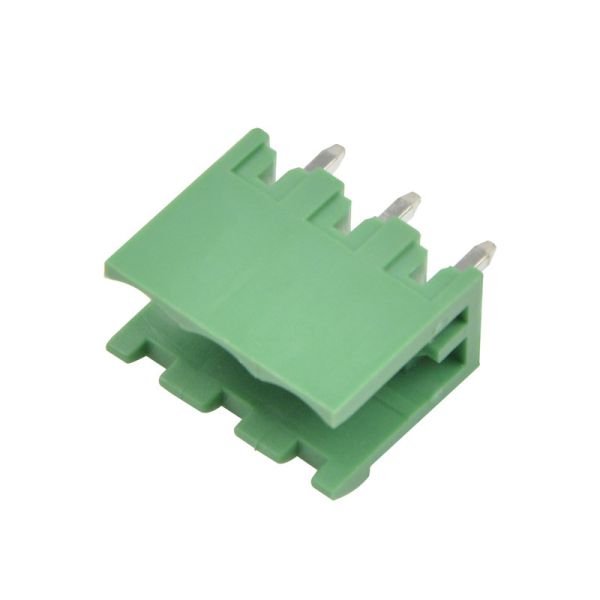

5.08mm Pitch Pluggable PCB Terminal Block Socket Male Type For Electric Dishwashers
N=Number of poles
Dim P=(N-1)*5.08
Dim L=N*5.08
Dim P Dim L
2-6P ±0.10 ±0.15
7-12P ±0.20 ±0.20
13-18P ±0.25 ±0.30
19-24P ±0.30 ±0.40

How to choose the right terminal block?
The difference between blocks can lead to problems if an incorrect type is used or if it is not connected properly. Follow the advice below to choose the right one:
Look at the electrical equipment you are working on to see what type of connection it requires; normally you will have either a screw-in or plug-in connection. Screw-in wires are placed inside the terminal block and screwed into position, and they are most common for equipment that does not require high voltage protection. A variation on the screw-in connection is one held in place by a spring mechanism. This connector can reduce the time spent on the job because you simply clip it into place instead of removing and replacing the screw.

A plug-in connection has a male terminal at the end of the wire. This terminal is connected to the female port on the terminal block and forms a secure connection. Plug-in blocks are commonly used in the fuse boxes of automobiles.
Once you know the type of connection that is required, you need to find a terminal block that fits the rest of your requirements. Consider what space you have for the connection and how many wires need to be connected. Terminal blocks are supplied in a variety of shapes and sizes, so you should be able to find one that suits your needs.

• Choose the correct rating. 3A, 5A, 15A, or 30A terminal blocks are widely available, and you'll want to buy the one that meets the highest current level that it will conduct in order to allow the most powerful piece of equipment to function.
