Specifications
Brand Name :
ANYO
Model Number :
12085WG
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per day
Delivery Time :
8-10 work days
Packaging Details :
customized carton
Other name :
electromagnetic buzzer
Rated voltage :
1.5V; 3V; 5V
Resonant frequency :
2048Hz
Rated current :
Max.30mA
Sound pressure lever :
Min.85dB/10cm
Weight :
2g
Description

Φ12*8.5mm split magnetic buzzer , AC type without pin terminal

Application:

Alarm devices
Timers
Confirmation of user input (ex: mouse click or keystroke)
Electronic metronomes
Annunciator panels
Game shows
Sporting events
Household appliances

Description:

A buzzer is a mechanical, electromechanical, magnetic, electromagnetic, electro-acoustic or piezoelectric audio signalling device.

A passive buzzer emits a tone when a voltage is applied across it. It also requires a specific signal to generate a variety of tones.

Difference between two main types of buzzer: active and passive.
A passive buzzer emits a tone when a voltage is applied across it. It also requires a specific signal to generate a variety of tones. The active buzzers are a lot simpler to use, so these are covered here.
An active buzzer can be connected just like an LED, but as they are a little more robust, you won’t be needing a resistor to protect them.

Specifications:

Type Unit 12085WG01 12085WG03 12085WG05
Rated voltage V 1.5 3 5
Operating voltage V 1-4 3-6 4-8
Rated current mA ≤30 ≤30 ≤30
Coil resistance Ω 8±2 16±4 42±6
Sound output at 10cm dB ≥85 ≥85 ≥85
Resonant frequency Hz 2048
Operating temperature -20~+70
Storage temperature -30~+80
Weight g 2

Difference between piezo buzzer & magnetic buzzer:

A piezo buzzer generates sound because of the piezoelectric effect from the piezoelectric ceramic which drives the metallic diaphragm to vibrate.

A magnetic buzzer is based on the electromagnetic principle, the metal diaphragm is pulled when input the power, and spring back without power.

The piezo buzzer is driven by square waves, and the magnetic buzzer needs 1/2 square waves to drive.

We suggest inputting higher voltage for a piezo buzzer, normally over 9V to have enough SPL. On the other hand, a magnetic buzzer can be driven to generate 85 dB by only 1.5V, but the consumption of the current will be much higher than Piezo one.

To compare the two types of buzzers, the magnetic type can have lower frequency response with the same dimension.

Though being limited by the dimension, the SPL of a magnetic buzzer can only reach to 90 dB. The piezo buzzer can achieve the SPL of 120 dB in some spec., some larger size can also easily reach to 100 dB.

Piezo buzzer Magnetic buzzer
Start method Piezoelectric effect Electro-magnetic effect
Size Big (10-50mm) Small(6-25mm)
Resonant frequency High(2-6KHz) Low(1-3KHz)
Operating voltage High(9-24V) Low(1.5-12V)
Sound level Louder(85-120dB) Lower(70-95dB)
Current consumption Low(5-20mA) High(35-60mA)

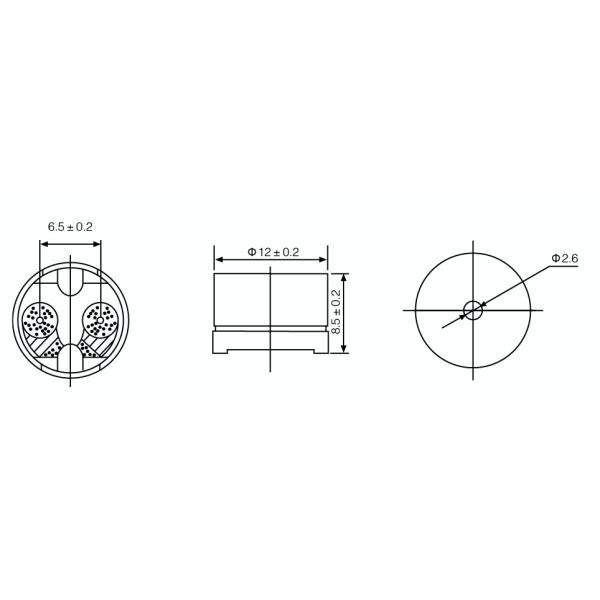

Dimension: (mm)

Tolerance: ±0.5

Split Electromagnetic Buzzer / Magnetic Door Buzzer Without Pin Terminal

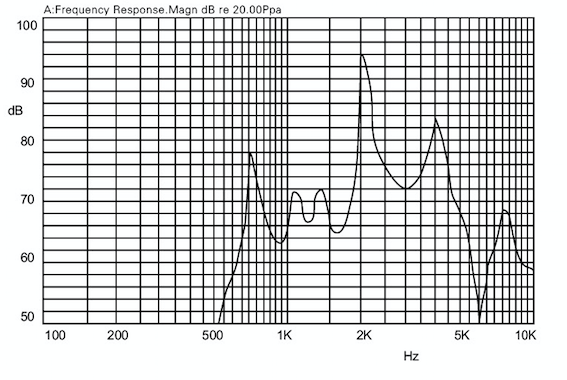

Frequency response:

Split Electromagnetic Buzzer / Magnetic Door Buzzer Without Pin Terminal
