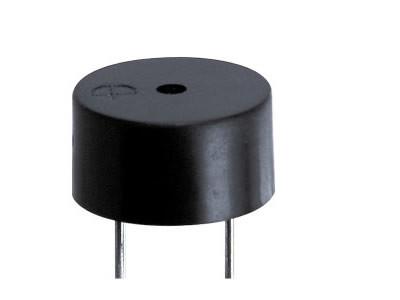

Integrated AC type Φ9*5.5mm micro magnetic buzzer with pin terminal

Description:

A buzzer is a mechanical, electromechanical, magnetic, electromagnetic, electro-acoustic or piezoelectric audio signalling device.

When a lower frequency is required, an electromagnetic buzzer can fill the need. These are very common in automotive chimes and higher end clinical diagnostic devices. A magnetic buzzer is based on the electromagnetic principle, the metal diaphragm is pulled when input the power, and spring back without power. A magnetic buzzer can be driven to generate 85 dB by only 1.5V, but the consumption of the current will be much higher than Piezo one.

Application:

It is used in the domestic, official and industrial fields and it has almost entirely replaced the electro-mechanical bell. In houses and offices, the buzzer is used to catch the attention of people. In the industrial arena, it is mostly used as an alarm device.

Specifications:

Precautions for use:

• Do not apply DC bias to the buzzer; otherwise insulation resistance may become low and affect the performance.
• Do not supply any voltage higher than applicable to the buzzer.
• Do not use the buzzer outdoors. It is designed for indoor use. If the buzzer has to be used outdoors, provide it with waterproofing measures; it will not operate normally if subjected to moisture.
• Do not wash the buzzer with solvent or allow gas to enter it while washing; any solvent that enters it may stay inside a long time and damage it.
• Do not apply any mechanical force to the buzzer; otherwise the case may deform and result in improper operation.
• Do not place any shielding material or the like just in front of the sound release hole of the buzzer; otherwise the sound pressure may vary and result in unstable buzzer operation. Make sure that the buzzer is not affected by a standing wave or the like.
• Be sure to solder the buzzer terminal at 350℃ max.(80W max.)(soldering iron trip) within 5 seconds using a solder containing silver.
• Avoid using the buzzer for a long time where any corrosive gas (H2S, etc.) exists; otherwise the parts or sound generator may corroded and result in improper operation.
• Be careful not to drop the buzzer.

Dimension: (mm)

Tolerance: ±0.5
