DC Type Magnetic Transducer Buzzer 12*6.5mm Pin Terminal With Oscillator Circuit
DC Type Magnetic Transducer Buzzer 12*6.5mm Pin Terminal With Oscillator Circuit
DC Type Magnetic Transducer Buzzer 12*6.5mm Pin Terminal With Oscillator Circuit
DC Type Magnetic Transducer Buzzer 12*6.5mm Pin Terminal With Oscillator Circuit
Specifications
Brand Name :
ANYO
Model Number :
12065YT
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per day
Delivery Time :
8-10 work days
Packaging Details :
customized carton
Other name :
Magnetic buzzer
Rated voltage :
DC 1.5-24V
Resonant frequency :
2600 ± 300Hz
Rated current :
Max.30mA
Sound pressure lever :
Min.85dB/10cm
Weight :
2g
Description

12*6.5mm DC type magnetic buzzer, pin terminal with oscillator circuit

Description:

Electromagnetic buzzers featuring high reliability consists mainly of products that support automotive applications. They are directly mountable to PCBs due to their pin terminals, and are available in small φ12 type and φ16 type designed for broadband applications.

As a type of electronic buzzer with integrated structure, buzzers, which are supplied by DC power, are widely used in computers, printers, photocopiers, alarms, electronic toys, automotive electronic devices, telephones, timers and other electronic products for voice devices. Buzzers can be categorized as active and passive ones.

Difference between active and passive:

An active buzzer has a built-in oscillating source, so it will make sounds when electrified. An active buzzer can be connected just like an LED, but as they are a little more robust, you won’t be needing a resistor to protect them.

A passive buzzer does not have such source, so it will not tweet if DC signals are used; instead, you need to use square waves whose frequency is between 2K and 5K to drive it. The active buzzer is often more expensive than the passive one because of multiple built-in oscillating circuits.

Difference between piezo buzzer & magnetic buzzer:

Piezo buzzer Magnetic buzzer
Start method Piezoelectric effect Electro-magnetic effect
Size Big (10-50mm) Small(6-25mm)
Resonant frequency High(2-6KHz) Low(1-3KHz)
Operating voltage High(9-24V) Low(1.5-12V)
Sound level Louder(85-120dB) Lower(70-95dB)
Current consumption Low(5-20mA) High(35-60mA)

Specifications:

Type Unit 12065YT01 12065YT03 12065YT05 12065YT09 12065YT12 12065YT24
Rated voltage V 1.5 3 5 9 12 24
Operating voltage V 1.3-2.5 2-5 3-7 8-12 9-15 16-30
Rated current mA ≤25 ≤30 ≤30 ≤30 ≤30 ≤45
Sound output at 10cm dB ≥80 ≥83 ≥85 ≥85 ≥85 ≥87
Resonant frequency Hz 2600±300
Operating temperature ℃ -20~+70
Storage temperature ℃ -30~+80
Weight g 2

Application:

• Medical equipment: glucose meter for blood, temperature test instrument, ECG monitor, fetal heart tester, blood glucose meter
• Home appliances: refrigerator, washing machine, computer, air conditioner, telephone, microwave oven, oven, TV set, keychain
• Electronic products: mobile phone, remote control, anti-lost device, POS machine, electronic toy, robot, watch, facial massager, instruments and apparatuses, unmanned aerial vehicle
• Security equipment: warning lights, anti-theft electronic locks, safety equipment and sirens/alarms/car alarm.

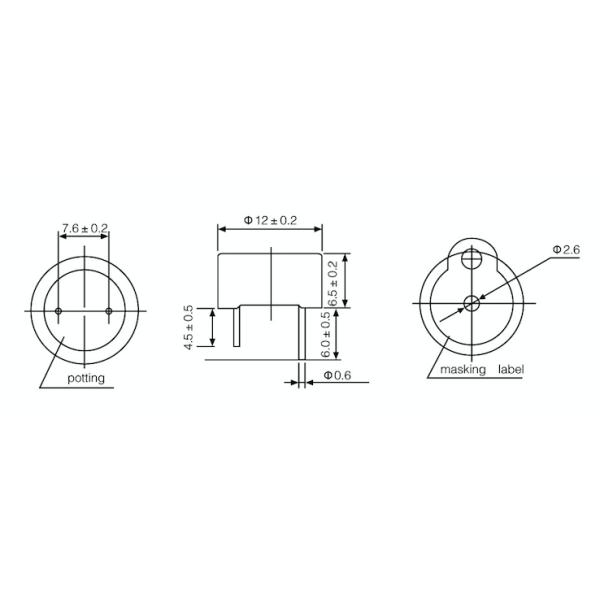

Dimension: (mm)

Tolerance: ±0.5

DC Type Magnetic Transducer Buzzer 12*6.5mm Pin Terminal With Oscillator Circuit

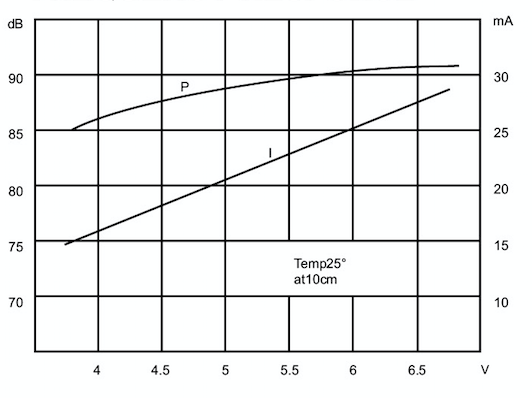

Frequency response:

DC Type Magnetic Transducer Buzzer 12*6.5mm Pin Terminal With Oscillator Circuit
