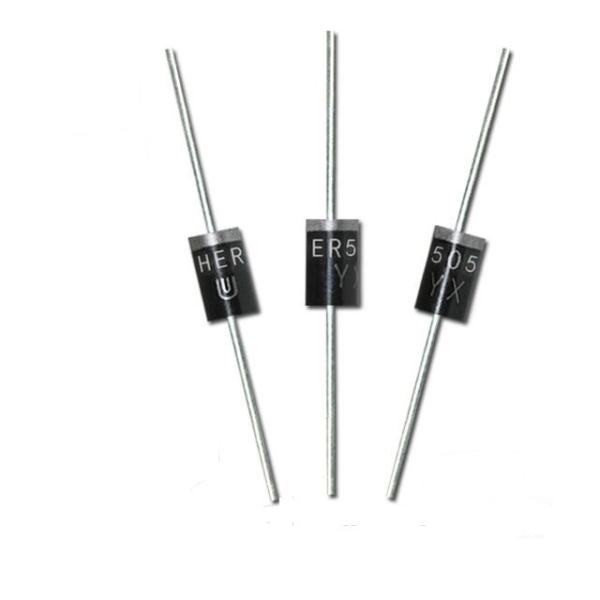

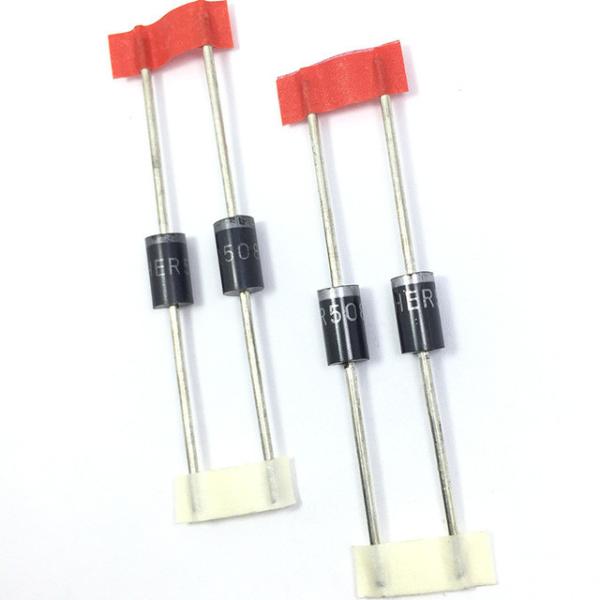

Sub Miniature Silicon Rectifier Diode HER 507 Ultra Fast Recovery Rectifier 5A 800V
Sub Miniature Silicon Rectifier Diode HER 507 Ultra Fast Recovery Rectifier 5A 800V
Sub Miniature Silicon Rectifier Diode HER 507 Ultra Fast Recovery Rectifier 5A 800V
Sub Miniature Silicon Rectifier Diode HER 507 Ultra Fast Recovery Rectifier 5A 800V
Specifications
Brand Name :
ANYO
Model Number :
HER507
Place of Origin :
CHINA
MOQ :
100000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000000PCS
Delivery Time :
8-10 work days
Packaging Details :
50000PCS/CARTON, 14.8KG, 43*27*31cm
Other name :
super fast recovery diode
Peak reverse voltage :
800V
Mounting Position :
Any
Operation temperature :
-55℃~125℃
Average forward current :
5A
Non-repetitive peak current :
200A
Description

HER 507 sub-miniature silicon ultra fast recovery rectifier 5A 800V

Description:

Ultrafast rectifiers are designed in order to have very low forward voltage with an ultrafast reverse recovery. This makes ultrafast rectifier diodes very efficient for secondary output rectifications in high frequency switched mode power supplies. Ultrafast rectifiers can directly reduce switching loss and improve overall power efficiency due to a good combination between reverse recovery time and forward voltage. Some features and benefits include high reverse voltage surge capability, high thermal cycling performance, low thermal resistance and very low on-state loss. Also, the soft recovery characteristic of ultrafast rectifiers minimizes power consuming oscillations.

Features:

• Low forward voltage drop
• High current capability
• High reliability
• High surge current capabilities

• Low reverse current
• Ultrafast recovery

Maximum Ratings & Thermal Characteristics:

Rating at 25℃ ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz.

For Capacitive load derate current by 20%.

Parameter Symbol HER507 Unit
Max.recurrent peak reverse voltage VRRM 800 V
Max. RMS voltage VRMS 560 V
Max. DC blocking voltage VDC 800 V
Max. average forward rectified output current at TA=55℃ IF(AV) 5.0 A
Peak forward surge current 10ms single half sine-wave superimposed on rated load IFSM 200 A
Max. instantaneous forward voltage at 5.0A VF 1.40 V
Max. reverse recovery time TJ=25¢J TRR 75 ns

Maximum DC reverse current Ta=25℃

At rated DC blocking voltage Ta=100℃

 ReJA

5.0

50.0

 ℃/W
Typical junction capacitance per element Cj 65 pF
Operating temperature range

Tj

 -65 to +150 ℃
Storage temperature range TSTG -65 to +150 ℃

NOTES:
1. Reverse Recovery Test Conditions: IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Measured at 1 MHz and applied reverse voltage of 4.0 V D.C.

Application:

Ultrafast Rectifiers are made for negative switching power supplies, as free wheeling diodes (such as in motor applications) and for use in inverters. They can also be found in military and other high reliability applications. Other regular applications include desktop personal computers, laptop and printer AC adaptors, DVD AC/DC power supplies, monitors, televisions and games units.

Dimension:
