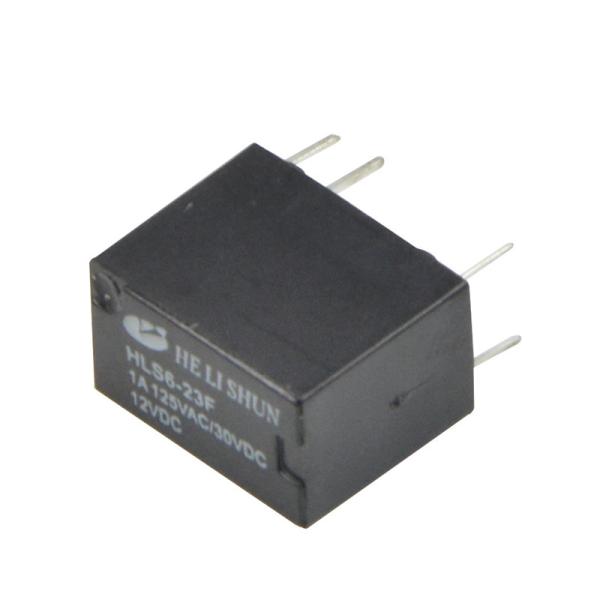

Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
Specifications
Brand Name :
ANYO
Model Number :
23F
Certification :
UL
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
30000PCS per day
Packaging Details :
2000pcs/carton, 6.9kg, 39.5*31*13.5cm
Delivery Time :
8-10 work days
Payment Terms :
L/C, T/T
Other name :
small signal relay
Contact ratings :
2A 120VAC/24VDC
Max.switching voltage :
120VAC/60VDC
Max.switching current :
2A
Max.switching power :
240VA/48W
Initial contact resistance :
100mΩMax at 6VDC 1A
Life expectancy electrical :
100,000 Operations(rated load)
Contact material :
Au+Ag alloy
Description

Miniature signal relay 23F(OMRON G5V-1) SPDT 2A 120VAC, 12.5*7.5*10mm

Description:

A relay is an electrically operated switch. Many relays use an electromagnet to mechanically operate a switch, but other operating principles are also used, such as solid-state relays. Relays are used where it is necessary to control a circuit by a low-power signal (with complete electrical isolation between control and controlled circuits), or where several circuits must be controlled by one signal.

Single Pole Double Throw (SPDT):

Such relay consists of a pair of coil pins, a common pin, a normally open (NO) pin and a normally closed (NC) pin. When the relay is not activated, the common pin is in contact with the NC pin and when it is activated, the common pin will break away from contact with the NC pin and subsequently makes contact with the NO pin. Also, when the relay is deactivated (from activated state), the common pin will conversely break away from contact with the NO pin and return back in contact with the NC pin.

Features:

• Low coil power consumption

• High sensitivity.
• Small size, light weight.
• PC board mounting.

Applications:

Suitable for automation facilities, telecommunication equipment, wireless radio remote control, sound control toys application etc.

General data:

Contact form

1C(1Z)-SPDT
Insulation resistance 100MΩMin at500VDC
Dielectric strength between open contacts 500VAC 50-60HZ(1 minute)
Dielectric strength between contacts and coil 1000VAC 50-60HZ(1 minute)
Operate time 5ms max.
Release time 5ms max.
Ambient temperature -30°C ~ +70°C
Shock resistance-Malfuction 10G
Shock resistance-Destruction 15G
Vibration resistance 10-55Hz,1.5mm double amplitude
Ambient humidity 40-85% RH
Weight Approx 1.8g

Coil data (@20°C)

Rated voltage

(VDC)

Coil Resistance

Ω(±10%)

 Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applied Voltage (VDC)
0.15W 0.2W
3 60 45 2.4 0.15 3.9
5 167 125 4 0.25 6.5
6 240 180 4.8 0.3 7.8
9 540 405 7.2 0.45 11.7
12 960 720 9.6 0.6 15.6
24 3840 2880 19.2 1.2 31.2

CAUTION:

1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2.Pickup and release voltage are for test purposes only and are not to be used as design criteria.
3.Unless otherwise stated, the rated coil voltage specified in coil parameter tableshall be used for all tests and its application to the relay

Outline dimension(mm):

Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC

PCB board layout and Wiring diagram:

Light Weight Miniature Signal Relay , 23F Omron G5V 1 Relay SPDT 2A 120VAC
