ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
Specifications
Brand Name :
ANYO
Model Number :
PT15N-H5
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
30000 per day
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Delivery Time :
8-10 work days
Payment Terms :
L/C, T/T
Other name :
Trimming potentiometer
Life :
10000 cycles
Torque :
0.5 to 2.5 Ncm(0.7 to 3.4 in-oz)
Mechanical rotation angle :
265°±5°
Stop torque :
>10 Ncm.(>14 in-oz)
Electrical rotation angle :
250°±20°
Description

Vertical mounted PT15 15mm carbon film trimmable potentiometer

Features:

• Carbon resistive element

• Dustproof enclosure

• Polyester substrate

• Standard Resistance Range :100Ω~100KΩ

• Tolerance:± 5%

Description:


A trimmer potentiometer is a kind of carbon potentiometer. It is an electronic component classified as variable resistor, which is designed to be infrequently adjusted. Usually just at the point of manufacture or when the unit is being recalibrated. Carbon Potentiometer is used as voltage divider to provide variable output voltage. Carbon Potentiometers uses carbon as resistive element. There are also different types of Potentiometers like Wire Wound type and ceramic type using different materials on resistive element. Carbon Potentiometer can be classified into logarithmic type and linear type depending on the mode of operations. Carbon Potentiometers are of many types and sizes depending on resistance value, power rating and type of mounting.

Application:

Trimmer potentiometer is a small potentiometer which is used for adjustment, tuning and calibration in circuits.

Electrical specifications

Range of value

100Ω≤Rn≤5MΩ

(Decad.1.0-2.0-2.2-2.5-4.7-5.0)
Tolerance

100Ω≤Rn≤1MΩ ±20% ;

1MΩ≤Rn≤5MΩ ±30%
Max. voltage

250 VDC(lin)

125 VDC(no lin)
Rated power

0.25W(lin)

0.12W(no lin)
Taper lin; log; alog
Residual resistance ≤5‰ Rn(3Ω min)
Equivalent noise resistance ≤3% Rn(3Ω min)
Operating temperature -25°C~70°C

Others:

Rotation life: After 10,000 rotation, the changes impacted no more than ± (15% R +0.5 Ω ) rotational noise not more than 100 mv

Terminal strength: After welding (350 °C, 3,5 seconds) , the termination of terminal contacts should be good, no loosening of.

Soldering ability: Dip the terminals into tin tank at 260°C±5°C for 2±0.5 seconds, the soldering area should be more than 90%.

Resistance SR code table:

Resistance Code
100Ω 101
500Ω 501
1KΩ 102
2KΩ 202
3.3KΩ 332
4.7KΩ 472
5KΩ 502
10KΩ 103
20KΩ 203
22KΩ 223
47KΩ 473
50KΩ 503
100KΩ 104
200KΩ 204
250KΩ 254
500KΩ 504
1MΩ 105
2MΩ 205
2.2MΩ 225

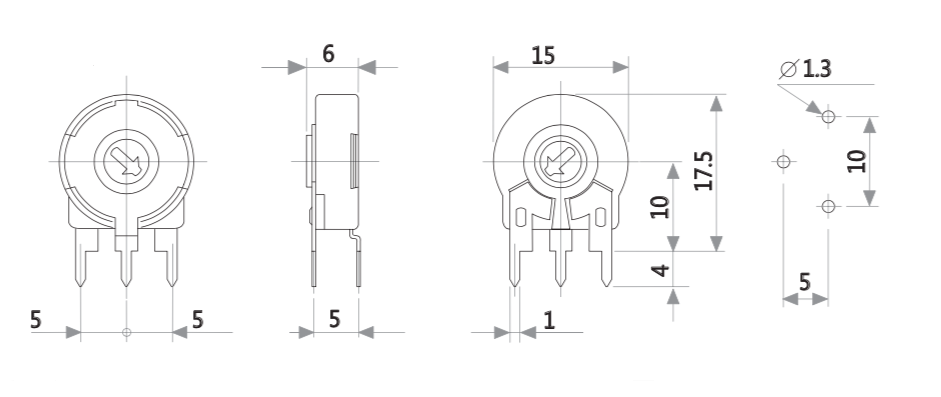

Mounting methods:

ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer

Rotors available:

ANYO Vertical Mount Potentiometer , PT15 15mm Carbon Film Trimmable Potentiometer
