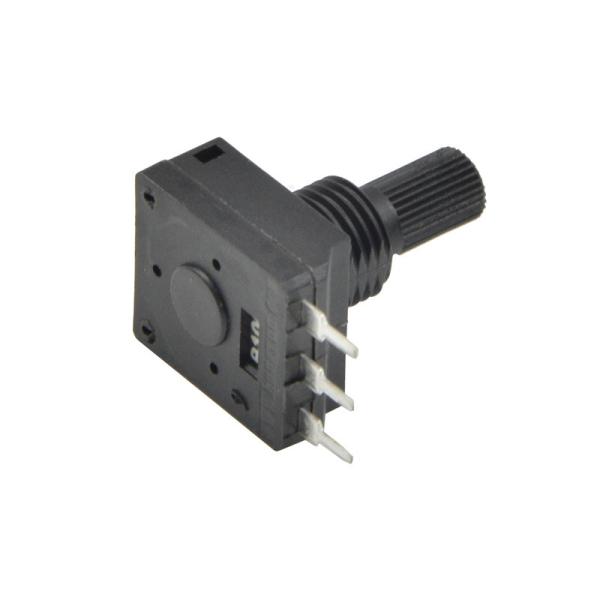

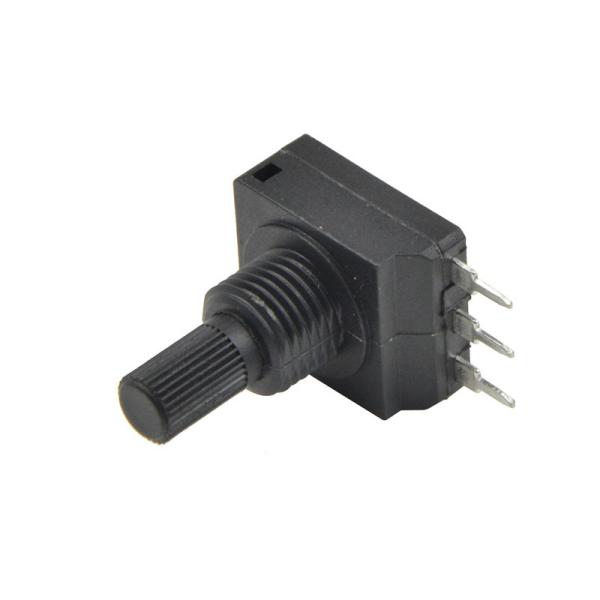

Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
Specifications
Brand Name :
ANYO
Model Number :
PC1601-H-B-P18
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
30000 per day
Packaging Details :
2000pcs/carton, 16kg, 39*31*25cm
Delivery Time :
8-10 work days
Payment Terms :
L/C, T/T
Other name :
Carbon Composition Potentiometer
Power rating :
0.2W
Total resistance :
100Ω ~ 2.2MΩ
Resistance tolerance :
± 20%
Resistance taper :
B
Rotary life :
10000 cycles
Description

Insulated shaft rotary potentiometer carbon film potentiometer PC1601-H-B-P18

Description:

A potentiometer is an electrical component that provides variable resistance. They're commonly found in user control circuits; volume, speed, brightness, etc…

A wide variety of potmeters exist. Manually adjustable potmeters can be divided in rotary or linear movement types. The tables below list the available types and their applications of rotary potentiometer

There are a number of terms in the electronics industry used to describe certain types of potentiometers:

• Slide pot or slider pot: a potentiometer that is adjusted by sliding the wiper left or right (or up and down, depending on the installation), usually with a finger or thumb
• Thumb pot or thumbwheel pot: a small rotating potentiometer meant to be adjusted infrequently by means of a small thumbwheel
• Trimpot or trimmer pot: a trimmer potentiometer typically meant to be adjusted once or infrequently for "fine-tuning" an electrical signal

Mechanical specifications:

Total rotation angel The angle is measured by rotating shaft from the end of terminal R1 to the end of terminal R3. 300°±5°
Rotation torque Rotational torque when turn the shaft :without special provision,rotational speed is 60°/s in ambient temperature 5-35℃ 0.3-1.5Ncm
Stop torque The force that shaft transfer from terminal 1 to stop point or terminal 3 to stop point after 10 seconds until be break >40Ncm

Electrical specifications:

Total resistance Measurement shall be made by the resistance between terminal R1and R3. 1KΩ
Resistance taper Resistance changes B
Total Resistance tolerance Measurement shall be made by the resistance tolerance between terminal R1 and R3. ± 20%
Rated power Rated power is based on continuous full load operation at the maximum voltage between terminal R1 and R3. 0.2W(50 ℃)
Residual resistance Test residual resistance beteen terminal R1 and R2; terminal R2 and R3 R0≤50Ω
Rotation of noise The murmur will appear when shaft turn from terminal 1 to terminal 3 by 30 rounds/minute equably speed. ≤100mV
Electrical rotation angle Resistance effective changes in perspective 280°±20°
Max operating voltage Maximal voltage which sustained by terminal R1 and R3 50VDC

Others:

Rotation life After 25,000 rotation after the test, the changes impacted no more than ± (15% R +0.5 Ω) rotational noise of not more than 100 mv
Terminal strength After welding (350℃, 3,5 seconds) after the of terminal contacts should be good, no termination loosening of
Soldering ability Dip the terminals into tin tank at 260°C±5°C for 2±0.5 seconds, the soldering area should be more than 90%.

Application:

Potentiometers were used to control the picture brightness, contrast, and colour response. A potentiometer was often used to adjust “vertical hold”, which affected the synchronization between the received picture signal and the receiver’s internal sweep circuit (a multi-vibrator).

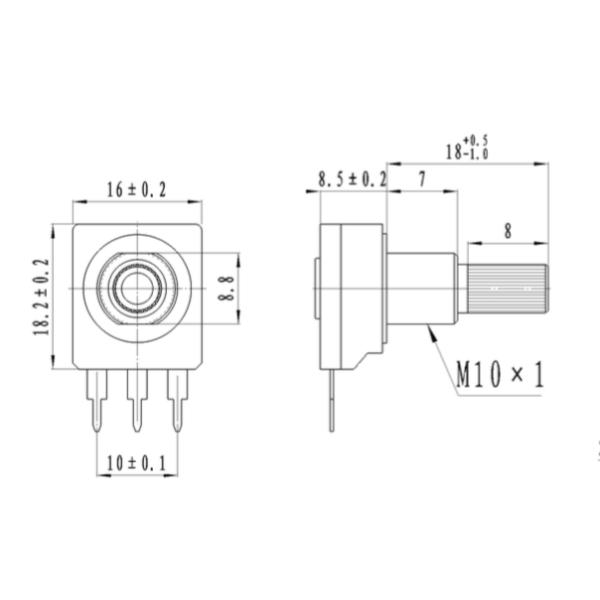

Dimension:

Insulated Shaft Motorized Rotary Potentiometer , Carbon Film Potentiometer PC1601-H-B-P18
