Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
Specifications
Brand Name :
ANYO
Model Number :
AY1046-1
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
D shape connector
Contact resistance :
30mΩ max.
Pin type :
Machined pin
Insulation resistance :
1000MΩ Min.
Mechanical life :
500 times
Packing :
Tray packing
Description

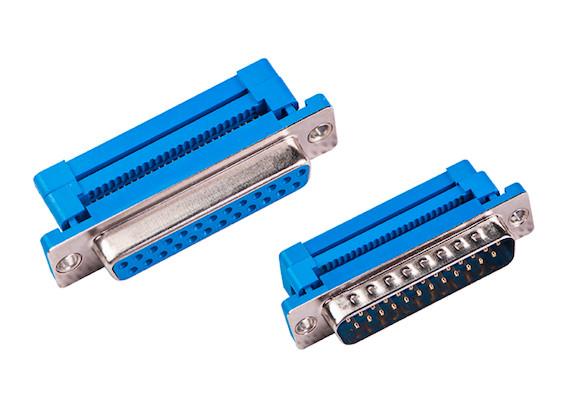

Female and Male IDC Crimp Type D-SUB Connector For Flat Ribbon Cable

Description:

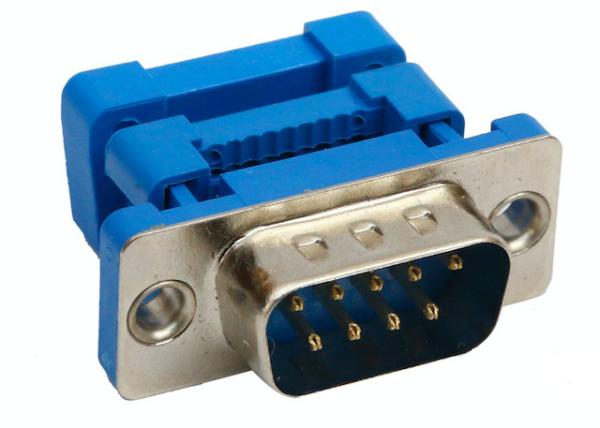

The connector containing the pins is the male D-SUB connector, whereas the connector containing the receptacle pins is the female.

Material:

Insulation: Glass filled PBT UL94V-0

Contact: Brass or Phosphor Bronze

Plating: Contact gold and weld tin over nickel

Electrical characteristics:

Contact resistance 30mΩ Max. initial at DC 100mA
Dielectric withstanding voltage 1000V AC(rms) 50Hz for 1 minute
Insulation resistance 1000MΩ Min. at 500VDC
Current rating 3A
Temperature range -40~105℃

Dimensions: (mm)

Position A B C D E
09M 30.90 24.99 16.92 11.08 10.16
15M 39.20 33.32 25.25 19.39 17.78
25M 53.10 47.04 38.96 33.24 30.48
37M 69.40 63.50 55.42 49.86 45.72

Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable

Female Male Small Electrical Connectors IDC Crimp Type D-SUB Connector For Flat Ribbon Cable
