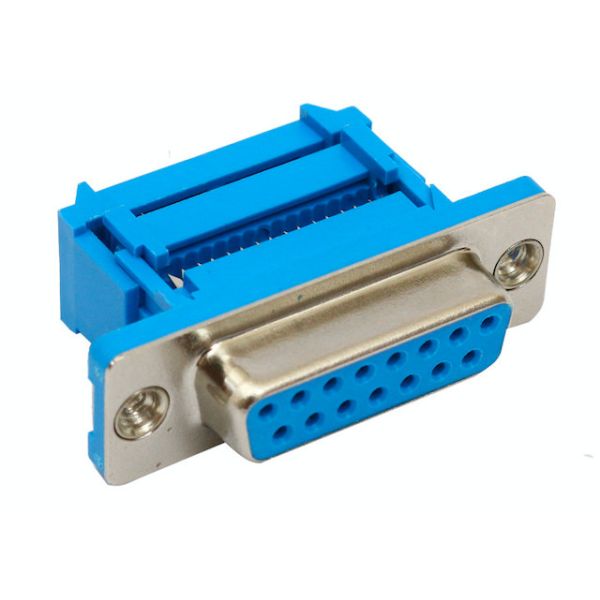

D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
Specifications
Brand Name :
ANYO
Model Number :
AY1046-2
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
IDC connector
Contact resistance :
30mΩ max.
Pin type :
Machined pin
Insulation resistance :
1000MΩ Min.
Type :
Adapter
Color :
Black and blue
Description

D Shape Connector IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable

Electrical characteristics:

Contact resistance 30mΩ Max. initial at DC 100mA
Dielectric withstanding voltage 500V AC(rms) 50Hz for 1 minute
Insulation resistance 1000MΩ Min. at 500VDC
Durability 300 cycles
Temperature range -40~105℃

Material:

Insulation: Thermoplastic UL94V-0

Contact: Copper alloy

Shell: Steel

Plating: Customized

Housing color: Customized

Dimensions: (mm)

Position A±0.1 B±0.2 C±0.2 D±0.2 E±0.2
Male Female
9P 10.16 30.80 24.99 17.90 16.33 19.00
15P 17.78 39.14 33.32 26.50 24.66 27.34
25P 30.48 53.04 47.04 40.00 38.38 41.24
37P 45.72 69.32 63.50 56.50 54.84 57.52

D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable

D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable

D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable

D Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon CableD Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon CableD Shape Small Electrical Connectors IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
