10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
Specifications
Brand Name :
ANYO
Model Number :
WH116AK-4R
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
2000pcs/carton, 16kg, 39*31*25cm
Other name :
Dimmer potentiometer
Resistance range :
1KΩ~2MΩ
Technology :
Carbon film
Resistance tolerance :
±20%, ±10%
Max. operating :
250V
Rotational noise :
≤47mV
Description

10A Dimmer Potentiometer With Push Switch For Lighting WH116AK-4R

Features:

• VDE, NEMKO, CB Recognized

• Conforms to 1058-1/EN61058-1 (VDE0630) standard

• High reliability, long life, big switch capacity type

• Form C (SPDT-NO) contact

• Glass fiber-filled flame-retardant polymer

• Special silver alloy contact

• Solder terminal

• Used for lighting fixture, dimmer, etc.

Mechanical characteristics:

Total rotation angle 270°±5°
Rotation torque 1~10mN.m
Shaft stop strength 3Kgf.cm
Switch working angle/stroke (3±0.5)mm
Switch working force/torque 150-500g
Click position 0detent/15/27detents

Electrical characteristics:

Operating temperature -20℃～+100℃
Switch rating AC 250V 10A
Switch contact resistance Less than 50mΩ
Rated wattage 0.2W
Rated voltage 250V
Insulation resistance More than 100Ω at DC500V
Dielectric

AC1500V,1minute(between carbon plate and contact)

AC750V,1 minute(between open contacts)
Resistance tolerance ±20% (more than 1M Ω±30%)
Rotational noise ≤47mV
Residual resistance R≥250KΩ 0.1% max. of total resistance
250R10KΩ 20Ω max
10KΩ≥R

Durability:

Mechanical life 50000 cycles
Electrical life 30000 cycles

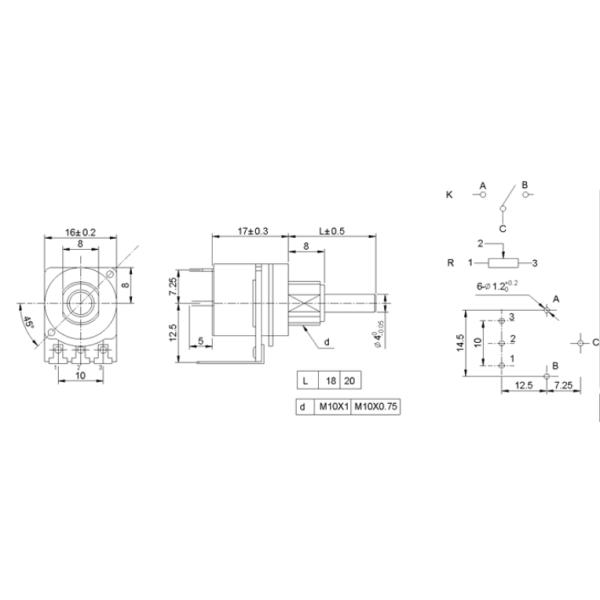

Dimension:

10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R

10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R

10A Dimmer Carbon Composition Potentiometer With Push Switch For Lighting WH116AK-4R
