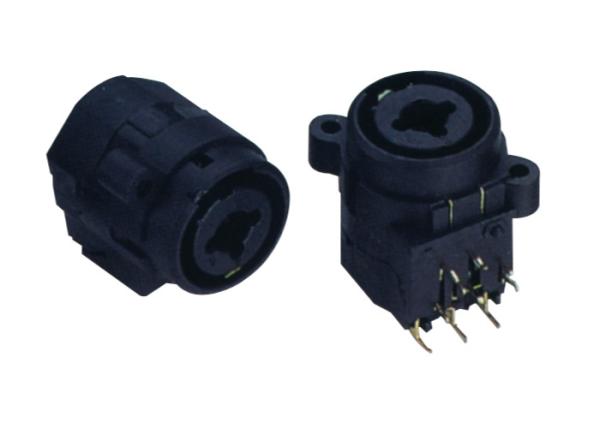

Audio Vertical Female Type XLR Combo Connector With 1/4 Stereo Jack
Audio Vertical Female Type XLR Combo Connector With 1/4 Stereo Jack
Audio Vertical Female Type XLR Combo Connector With 1/4 Stereo Jack
Audio Vertical Female Type XLR Combo Connector With 1/4 Stereo Jack
Specifications
Brand Name :
FENFA
Model Number :
F170
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
Combo connector
Rated current :
7.5A
Gender :
Female
Contact resistance :
< 10 mΩ (XLR)
Temperature :
-30~80℃
Insertion force :
≤25N
Description

Audio Vertical Female XLR Combo Connectors With 1/4" Stereo Jack

Description:

Audio XLR combo connectors allow you to plug in an XLR or a 1/4" cable into the same socket. The AC series C type chassis receptacles feature two connectors in one, space-saving housing. A combined XLR female receptacle together with a 6.35mm (1/4") phone jack give the designer more flexibility ensuring premium board space is saved.

Electrical:

Contact resistance < 10 mΩ (XLR)
Contact resistance < 20 mΩ (jack & switching contacts)
Dielectric strength 1.5KVDC
Insulation resistance >10MΩ(initial)
Rated current per contact 7.5 A (XLR)
Rated current per contact 7.5A (Jack)
Rated voltage <50V
Switching contacts 3

Mechanical:

Insertion force ≤ 25 N
Withdrawal force ≤ 25 N
Lifetime >1000 mating cycles
Panel thickness Max. 7mm 0.27"
Mounting direction Rear mounting

Dimension: (mm)

Audio Vertical Female Type XLR Combo Connector With 1/4
