3Pin 250VAC Small Electrical Connectors 3-7 Pole For Microphone Chassis
3Pin 250VAC Small Electrical Connectors 3-7 Pole For Microphone Chassis
3Pin 250VAC Small Electrical Connectors 3-7 Pole For Microphone Chassis
3Pin 250VAC Small Electrical Connectors 3-7 Pole For Microphone Chassis
Specifications
Brand Name :
ANYO
Model Number :
T405
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
XLR socket
Rated voltage :
250VAC
Contact resistance :
5mΩ
Lifetime :
>2000 cycles
Cable OD :
Φ2-Φ4/Φ3-Φ5
Insulation resistance :
1000MΩ/AC500V
Description

3Pin Mini Male XLR Microphone Chassis Mounting Connector match with TA5F

Description:

XLR connectors are widely used in various applications of the professional audio world. Whether as microphone connector, on lighting applications or any kind of sound equipment, the XLR is all over the entertainment industry.

The Mini XLR Connector, also known as the "TQG" or "TA3"/"TA4" connector (number depending on number of poles), is used on compact items such as UHF wireless microphone beltpacks, some studio and field recording headphones, as well as Audio Technica condenser microphones, but is not in general use on major items such as mixing desks.

XLR connectors are available in male and female versions in both cable and chassis mounting designs. The female XLR connectors are designed to first connect pin 1 (the earth pin), before the other pins make contact, when a male XLR connector is inserted. With the ground connection established before the signal lines are connected, the insertion (and removal) of XLR connectors in live equipment is possible without picking up external signals.

Feature:

• Reliable and robust
• Easy to assemble, simple to use
• Excellent cable protection and retention - Colour coding
• Available in 3 to 7 pole

Specification:

Rated voltage 250VAC
Contact resistance 5mΩ
Insulation resistance 1000MΩ/AC500V
Mating lifetime >2000 cycles
Cable OD Φ2-Φ4/Φ3-Φ5

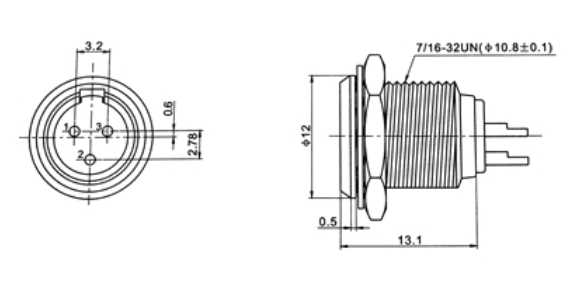

Dimension: (mm)

3Pin 250VAC Small Electrical Connectors 3-7 Pole For Microphone Chassis
