Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating
Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating
Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating
Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating
Specifications
Brand Name :
ANYO
Model Number :
AY1003-1A
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
Test Socket
Current rating :
1A
Insulator Resistance :
5000MΩ min. at DC500V
Contact Resistance :
20mΩ max. at DC100mA
Temperature :
-55~105℃
Pitch :
1.778mm
Description

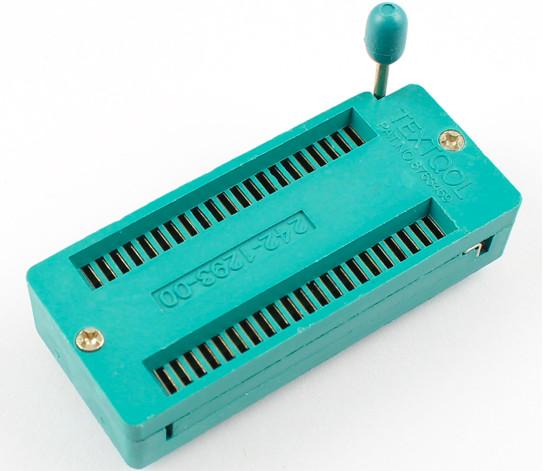

Gold plated 1.778mm Pitch Universal ZIF Test IC Socket Connector

Description:

Zero Insertion Force (ZIF) sockets clamp onto a chip, making a good electrical connection, when you push the lever down. When you release the lever, it releases the chip. This allows you to repeatedly insert or remove a chip from the socket without damage to either.

Specification:

Material

Housing: 30% glass filled PBT UL94-0

Contacts: Phosphor bronze

Plating: Gold plated 3u over 50u nickel

Tin plated 100u over 50u nickel
Current rating 1A
Insulator resistance 5000MΩ min. at DC500V
Contact resistance 20mΩ max. at DC100mA
Temperature -55~105℃

Dimension: (mm)

Position A B C D E
28P 40.1 36.1 23.11 17.5 10.16
32P 44.1 40.1 26.67 17.5 10.16
42P W 52.4 48.4 35.56 22.6 15.24
42P N 52.4 48.4 35.56 17.5 10.16
56P 64.8 60.8 48 22.6 15.24
64P 72 68 55.11 27.7 20.32

Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating

Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating

Gold Plated ZIF Test IC Socket Connector 1.778mm Pitch 1A Current Rating
