2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing
2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing
2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing
2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing
Specifications
Brand Name :
ANYO
Model Number :
AY1003-2
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
ZIF Socket
Current rating :
1A
Insulator Resistance :
5000MΩ min. at DC500V
Contact Resistance :
20mΩ max. at DC100mA
Temperature :
-55~105℃
Contact plating :
Au or Tin
Description

2.00mm Universal ZIF Test Board Socket Connector For IC Testing

Description:

Zero insertion force (ZIF) allows you to insert and remove chips easily from an existing circuits. These are often used for chip programmers or when you need to test a chip without damaging it. Move the lever up and chips drop right in. Move the lever down to 'latch' the chip in place.

Specification:

Material

Housing: 30% glass filled PBT UL94-0

Contacts: Phosphor bronze

Plating: Gold plated 3u over 50u nickel

Tin plated 100u over 50u nickel
Current rating 1A
Insulator resistance 5000MΩ min. at DC500V
Contact resistance 20mΩ max. at DC100mA
Temperature -55~105℃

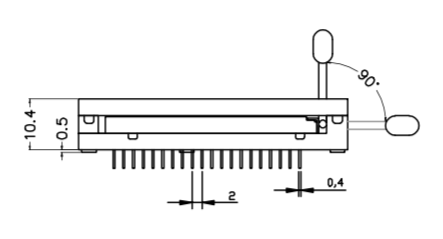

Dimension: (mm)

Position A B C D E
28P 42.5 38.5 26 17.5 10.16
40P 54.8 50.8 38 17.5 10.16

2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing

2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing

2.00mm Universal ZIF Socket Small Electrical Connectors For IC Testing
