2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm
2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm
2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm
2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm
Specifications
Brand Name :
ANYO
Model Number :
AY1001
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
IC Socket
Current rating :
1A
Insulator Resistance :
5000MΩ min. at DC500V
Contact Resistance :
20mΩ max. at DC100mA
Temperature :
-55~105℃
Contact plating :
Au
Description

2.54mm IC Test Socket ZIF Socket Connector With Center Distance 7.62/15.24mm

Description:

Zero insertion force (ZIF) is a type of IC socket or electrical connector that requires very little force for insertion. With a ZIF socket, before the IC is inserted, a lever or slider on the side of the socket is moved, pushing all the sprung contacts apart so that the IC can be inserted with very little force - generally the weight of the IC itself is sufficient and no external downward force is required. The lever is then moved back, allowing the contacts to close and grip the pins of the IC. ZIF sockets are much more expensive than standard IC sockets and also tend to take up a larger board area due to the space taken up by the lever mechanism. Therefore they are only used when there is a good reason to do so.

Specification:

Material

Housing: 30% glass filled PBT UL94-0

Contacts: Phosphor bronze

Plating: Gold plated 3u over 50u nickel

Tin plated 100u over 50u nickel
Current rating 1A
Insulator resistance 5000MΩ min. at DC500V
Contact resistance 20mΩ max. at DC100mA
Temperature -55~105℃

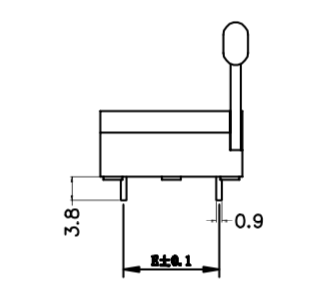

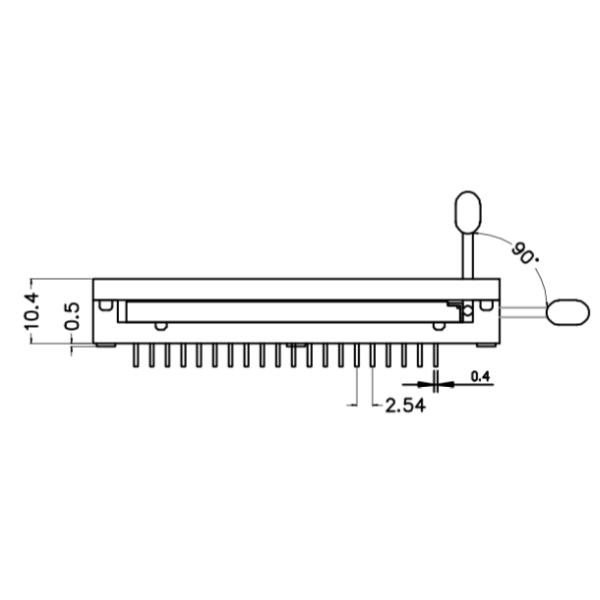

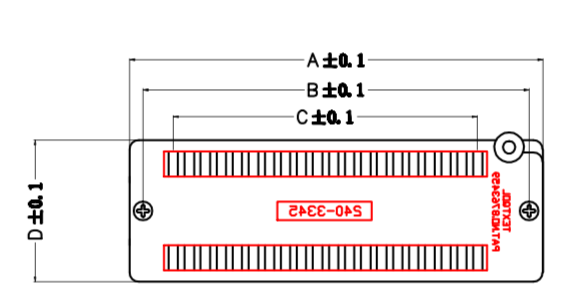

Dimension: (mm)

Position A B C D E
14P 33.2 29.2 15.24 14.9 7.62
16P 35 31 17.78 14.9 7.62
18P 38 34 20.32 14.9 7.62
20P 40.8 36.8 22.86 14.9 7.62
24P W 45.2 41.2 27.94 22.6 15.24
24P N 45.8 41.8 27.94 14.9 7.62
28P W 50.3 46.3 33.02 22.6 15.24
28P N 50.3 46.3 33.02 14.9 7.62
32P 55.3 51.3 38.1 22.6 15.24
40P 65.3 61.3 48.26 22.6 15.24
64P 100.3 95.3 78.74 32.3 22.86

2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm

2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm

2.54mm IC Test Socket / Zif Type Connector With Center Distance 7.62 / 15.24mm
