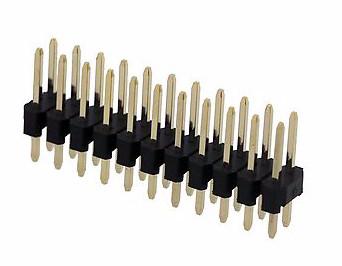

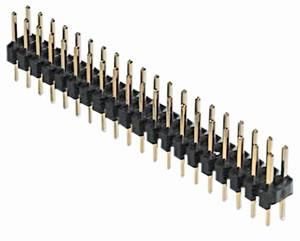

Through Hole 2.54MM Small Electrical Connectors Dual Row Straight Pin Header 2 - 80 Pins Gold Plated
Through Hole 2.54MM Small Electrical Connectors Dual Row Straight Pin Header 2 - 80 Pins Gold Plated
Through Hole 2.54MM Small Electrical Connectors Dual Row Straight Pin Header 2 - 80 Pins Gold Plated
Through Hole 2.54MM Small Electrical Connectors Dual Row Straight Pin Header 2 - 80 Pins Gold Plated
Specifications
Brand Name :
ANYO
Model Number :
AY1009-2A
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
Strip header
Current rating :
2A
Insulator Resistance :
1000MΩ min
Contact Resistance :
20mΩ max.
Temperature :
-40~105℃
Contact plating :
Au
Description

Gold Plated Through Hole 2.54MM Dual Row Straight Pin Header 2～80 Pins

Description:

Pin header is a form of electrical connector. It consists of through hole and surface mount in single, double and triple row. Straight, right angle and U shaped configurations allow a wide variety of design options.

Specification:

Material

Housing: 30% glass filled PBT UL94-0

Contacts: Brass
Current rating 2A
Plating Gold plated
Insulator resistance 1000MΩ min. at DC500V
Contact resistance 20mΩ max.
Withstand voltage 1000V AC/rms 50HZ For 1 minute
Storage Temperature -20~70℃
Operating Temperature -40~105℃

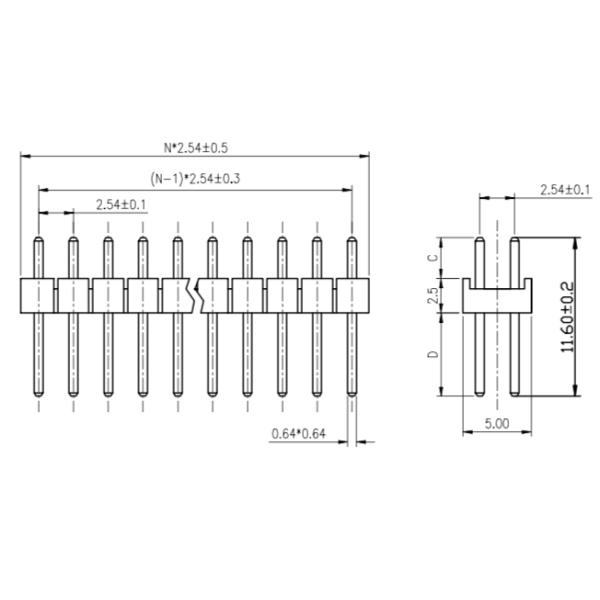

Dimension: (mm)

N: Number of contacts

A/B: Customer length available

Through Hole 2.54MM Small Electrical Connectors Dual Row Straight Pin Header 2 - 80 Pins Gold Plated
