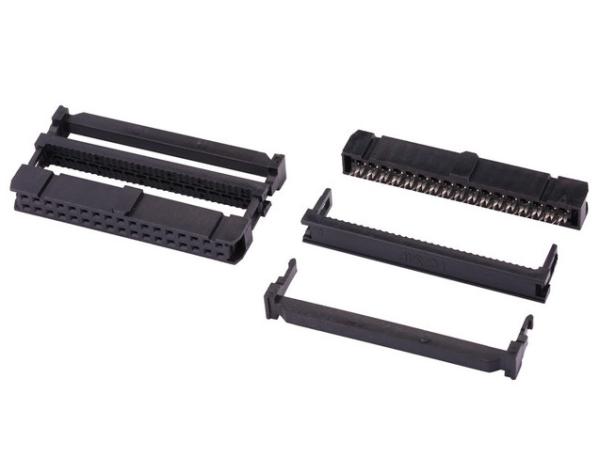

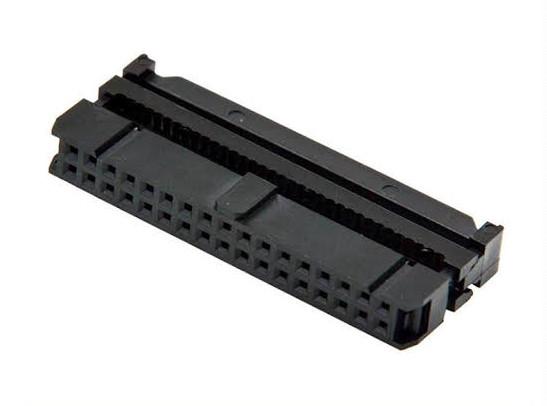

2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting
2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting
2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting
2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting
Specifications
Brand Name :
FENFA
Model Number :
IDC-2.54
Place of Origin :
CHINA
MOQ :
2000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100000 per day
Delivery Time :
8-10 work days
Packaging Details :
Customized carton
Other name :
IDC socket
Current rating :
1A
Insulator Material :
PA66
Contact Material :
Phosphor Bronze
Temperature :
-40~105℃
Contact plating :
Au
Description

2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting

Description:

An insulation-displacement contact (IDC), also known as insulation-piercing contact (IPC), is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, bypassing the need to strip the conductors of insulation before connecting. When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.

Specification:

Contact resistance 20mΩ Max. initial
Dielectric withstanding voltage 500V AC (rms) for 1 minute
Insulation resistance 1000MΩ min.
Temperature -40~105℃

Dimension: (mm)

Housing with contact:

2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting

Upper cover:

2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting

Top cover:

2.54mm Dual Row IDC / FC Socket Female Connector For Cable Mounting

Position Dimension
A B
08

14.82

 7.62
10 17.36 10.16
14 22.44 15.24
16 24.98 17.78
20 30.06 22.86
24 35.14 27.94
26 37.68 30.48
30 42.76 25.56
34 47.84 40.64
40 55.46 48.26
50 68.16 60.96
60 80.86 73.66
64 85.94 78.74
