Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
Specifications
Brand Name :
ANYO
Model Number :
R08712NO
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Other name :
Rotary Potentiometer
Rotational Life :
30000 times
Size :
8mm Single unit
Total Rotational Angle :
300°±5°
Application :
Volume Controlling
Rated voltage :
DC10V, AC50V
Description

8mm Vertical Type Single Unit Potentiometer For Volume Controlling

Feature:

• Choose metal, PA66/PBT material for shell, moisture-proof, moisture-proof and high temperature resistance.

• Lathe machining, die-cast metal shaft is strong and durable, not easy to break.
• Silver-plated, tin-plated pins easy to solder, anti-oxidation

Electrical specifications:

Items Specification
End resistance (terminal: 1-2,2-3) R≤10KΩ:≤10Ω； 10KΩ＜R≤250KΩ:≤20Ω； R＞250KΩ:≤0.1% R
Ratings power B Taper : 0.05W, Other taper : 0.025W
Maximum operating voltage B Taper :10V AC or 50V AC,Other taper : 5V DC or 25V AC
Insulation resistance 100MΩ min. at DC 250V
Dielectric strength 1 minute at 300V AC
Slider noise 100mV max (before reflow and cycle test)
Output signal Refer to attached drawing

Mechanical Characteristics:

Items Specification
Rotational torque(gf.cm) 10~150gf.cm (Rotation speed: 60° / 1 second)
Push-pull strength 8Kgf min
Total rotational angle 300°
Stopper strength 3Kgf.cm min

Durability:

Items Specification
Rotational life Permissible resistance change after 15,000±200 cycles on 600 r.p.h .without load ±15% max.
Operating temperature -30℃~70℃

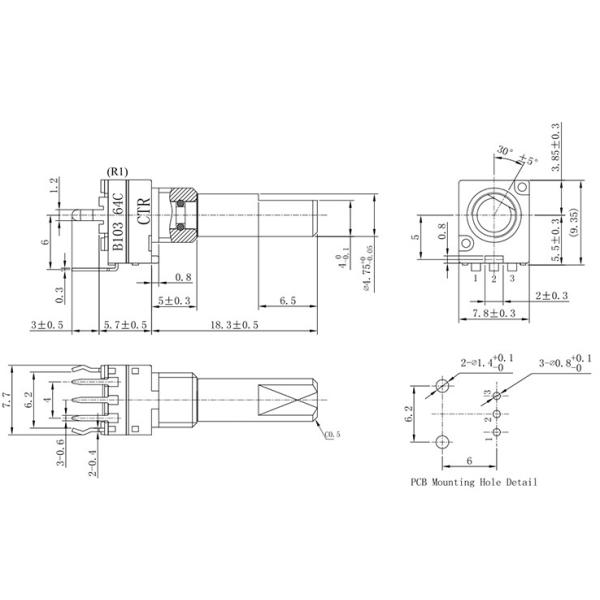

Dimension:

Vertical Type Single Unit Carbon Composition Potentiometer For Volume Controlling
