17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
Specifications
Brand Name :
ANYO
Model Number :
SR17
Place of Origin :
CHINA
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30000 per day
Delivery Time :
8-10 work days
Packaging Details :
20000pcs/carton, 13kg, 40*30*25cm
Other name :
Mains Switch
No. of wafers :
Single
No. of poles :
2
No. of positions :
2
Current rating :
4/80A @ 250VAC
Indexing angle :
45°
Description

17mm Double Pole Rotary Mains Switch Available In PCB Or Solder Terminals

Feature:

• Double pole single throw

• Solder or PCB terminals

• 45° index angle

• Spindle flats (optional)

Electrical specifications:

Switch rating 4/80A @250VAC, R/C: 10A @ 12VDC
Life >10000 cycles
Operating temperature -25℃~ +85℃
Proof voltage 3K VAC (Initial)
Insulation resistance >999M Ω @ 500VDC (Initial)
Contact resistance <20mΩ (Initial)
Contact Gap 3mm (Min.)
Switch contacts Silver cadmium oxide
Switch chamber Polyester G.F.(PBT) V0 rated
Tag panel SRBP
Terminals Brass CZ108, Ag plated

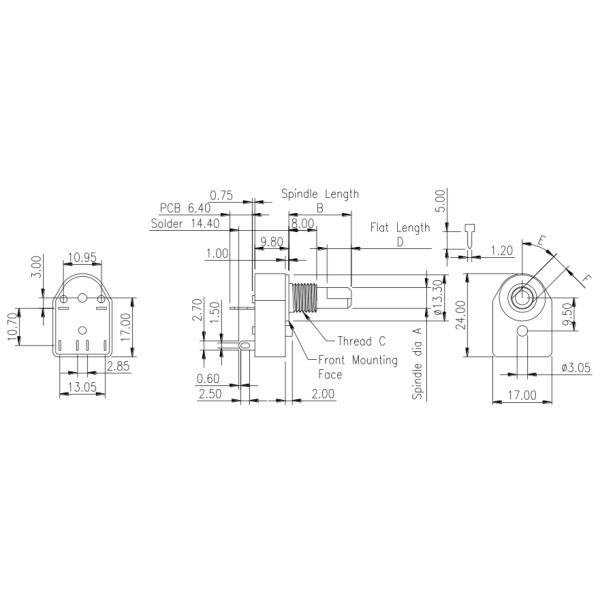

Dimension:

17mm Double Pole Rotary Mains Switch Solder / PCB Terminals 45° Index Angle
